Radiation Shielded Camera Version 2




Overview:

A GoPro Hero 3+ silver camera was shielded with lead and sent through an industrial irradiator while viewing plastic and mineral samples. The plastics were used to produce lichtenberg figures.

The irradiation facility is the Mercury Plastics NeoBeam facility which is used for cross linking plastics. The accelerator can produce a 5MeV, 20mA electron beam which is scanned over a moving cart. These videos were of a Lichtenberg production run by Bert Hickman who sells the Lichtenberg figures on his website: http://www.capturedlightning.com/

View the previous version of this system: Radcam1

Irradiation run videos and pictures: Radcam2 Neobeam Run



Radiation Shielded Camera (11/21/2014)





Radiation Shielded Camera (11/21/2014)

Irradiation run videos and pictures: Radcam2 Neobeam Run



Radiation Shielded Camera (11/21/2014)

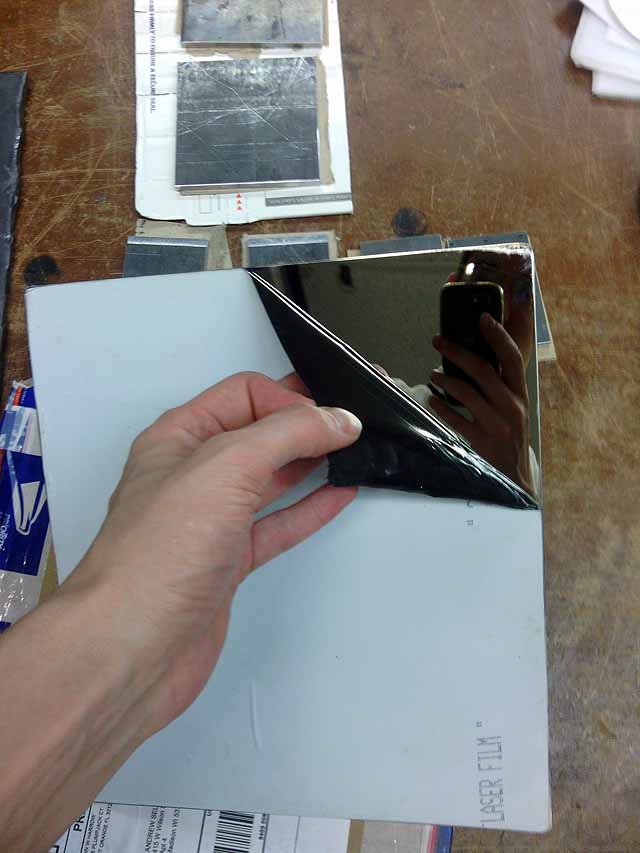

Stainless steel mirror



Radiation Shielded Camera (11/21/2014)

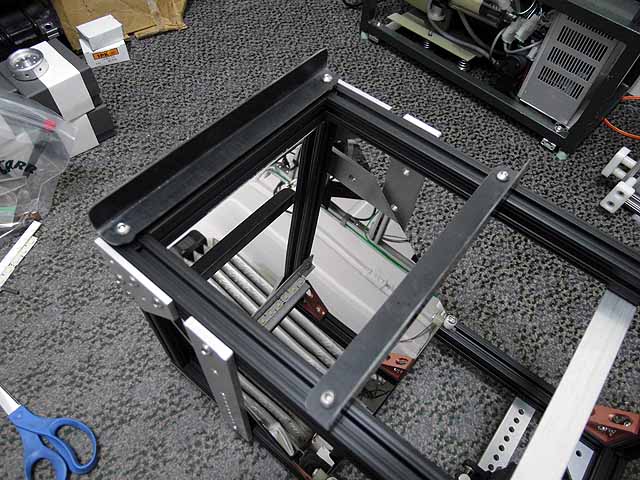

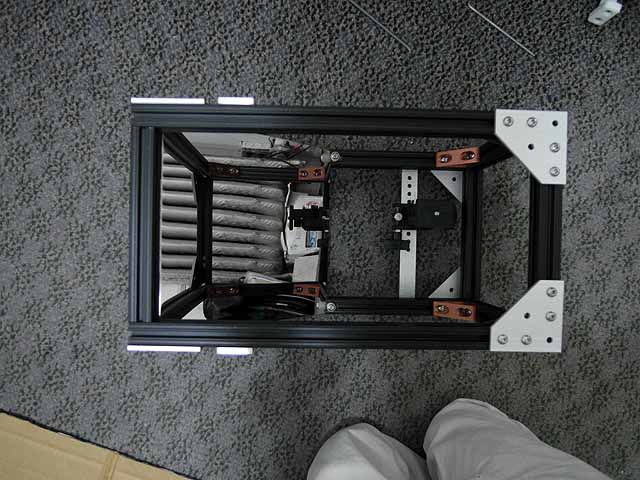

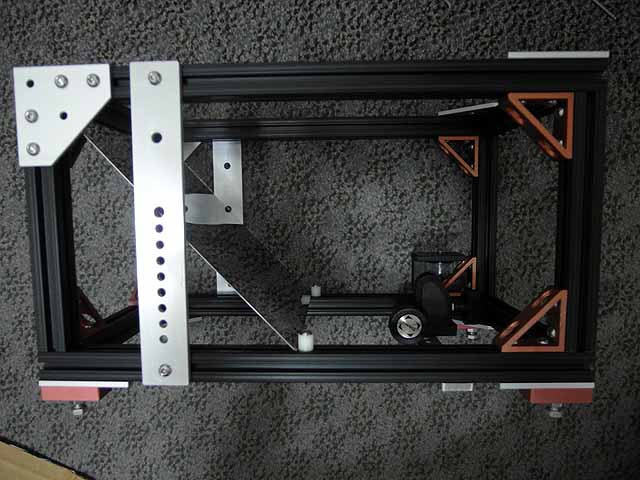

Mounting frame for camera and mirror. 45 degree mirror allows camera to look directly up into the electron beam with out placing the camera directly under it and exposing the camera to the beam.



Radiation Shielded Camera (11/21/2014)

45 degree mirror and tripod head to mount camera



Radiation Shielded Camera (11/21/2014)

Tripod head to mount camera bolted onto bottom of frame



Radiation Shielded Camera (11/21/2014)

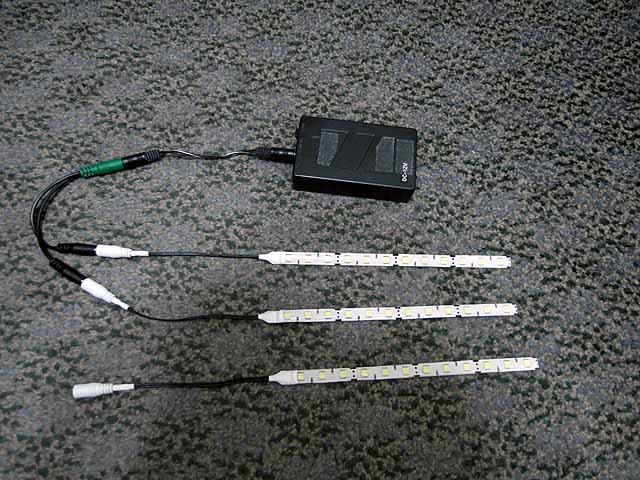

LED light strip provide illumination inside the irradiator



Radiation Shielded Camera (11/21/2014)

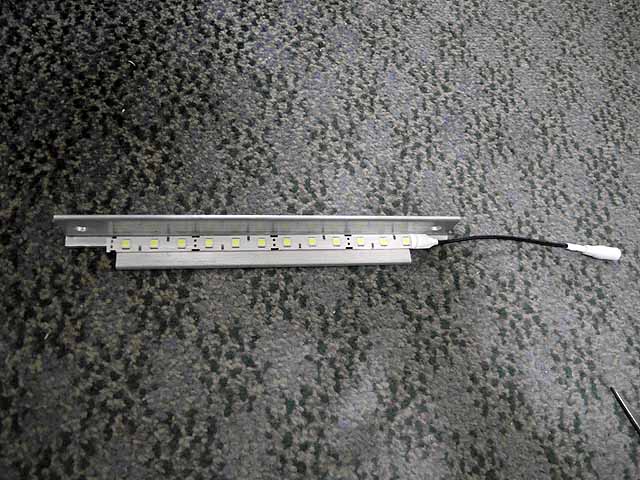

LED light strip mounted on aluminum bracket



Radiation Shielded Camera (11/21/2014)

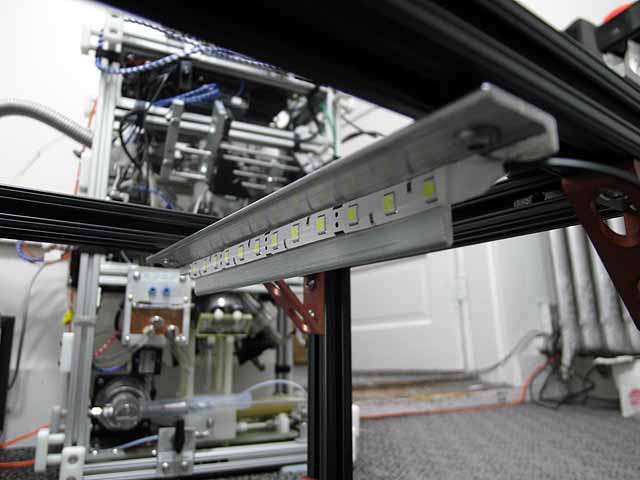

LED light strip mounted on aluminum bracket attached to frame



Radiation Shielded Camera (11/21/2014)

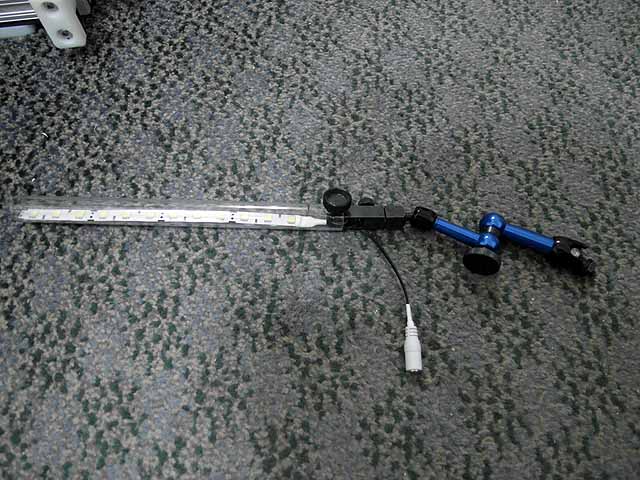

LED light strip mounted on adjustable arm



Radiation Shielded Camera (11/21/2014)

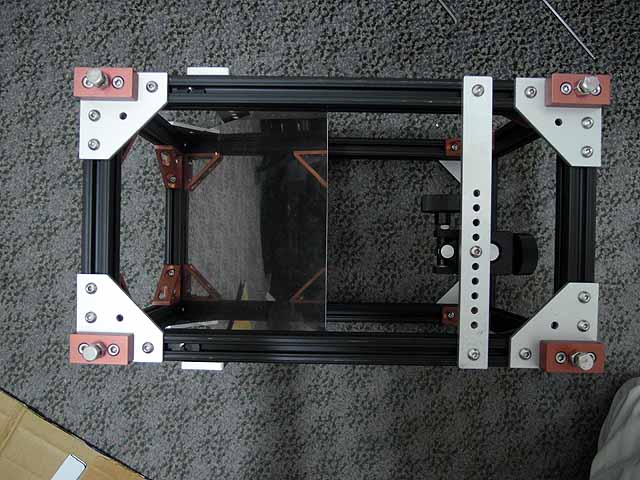

Irradiation sample holders secure sample above mirror in view of camera.



Radiation Shielded Camera (11/21/2014)

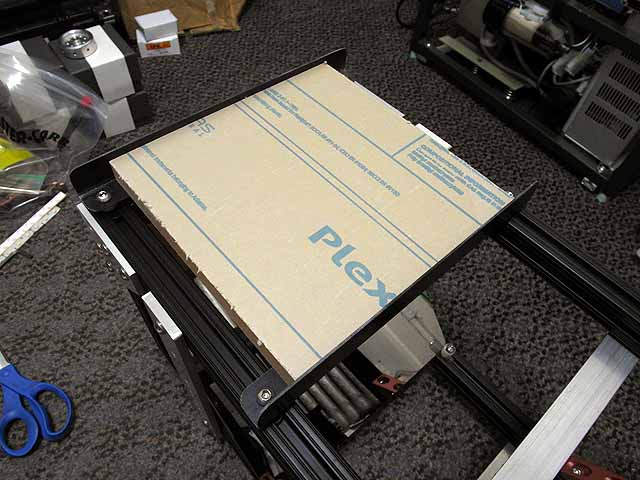

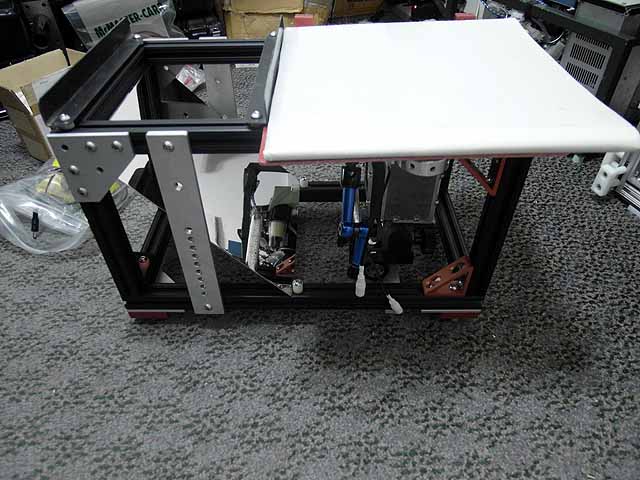

Irradiation sample holders tested with 7.875" square acrylic



Radiation Shielded Camera (11/21/2014)

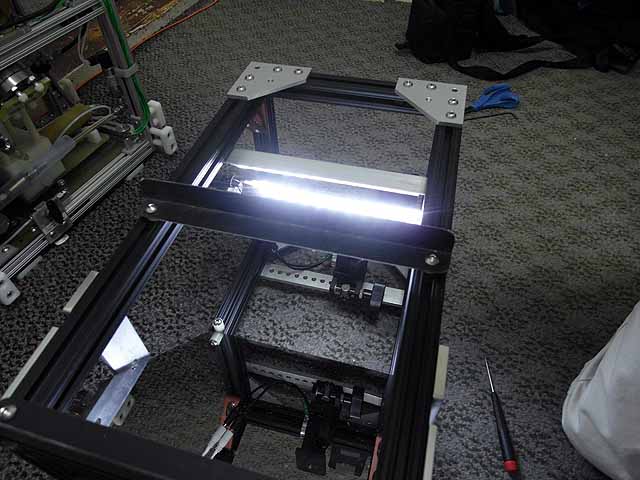

LED light strip illumination test



Radiation Shielded Camera (11/21/2014)

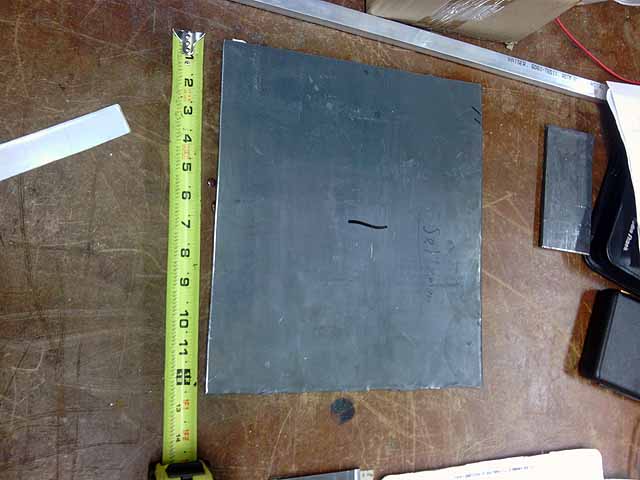

1/4" thick lead sheet for shielding



Radiation Shielded Camera (11/21/2014)

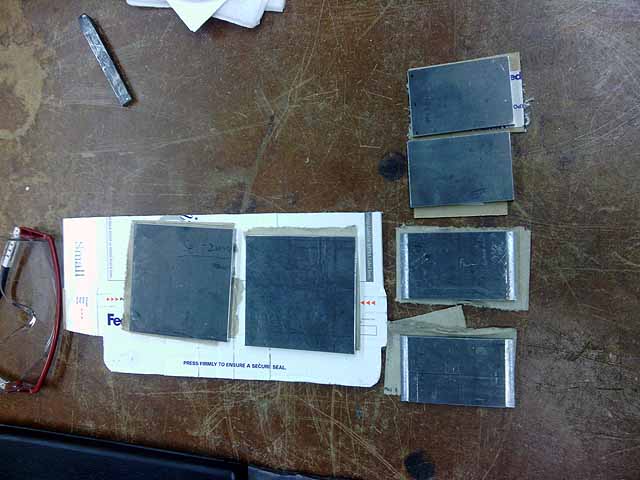

Lead panels cut out for camera shield box



Radiation Shielded Camera (11/21/2014)

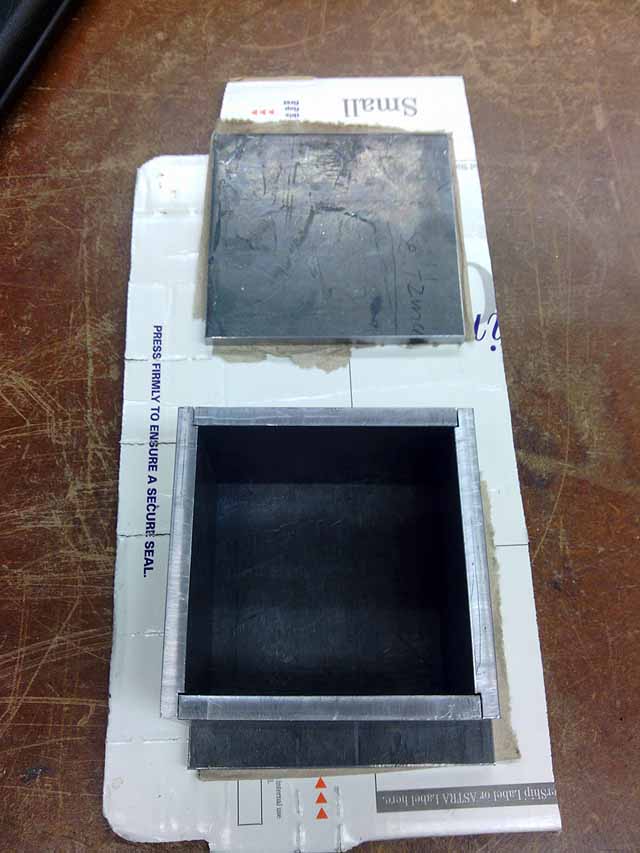

Test fit of panels. 1/16" overlap at all joints to prevent x-ray shine through



Radiation Shielded Camera (11/21/2014)

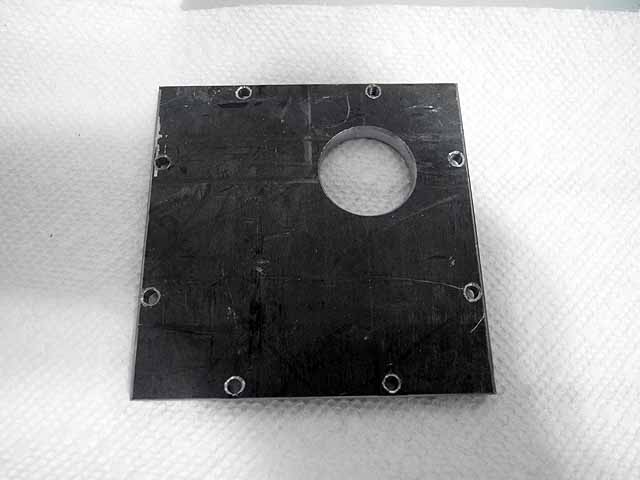

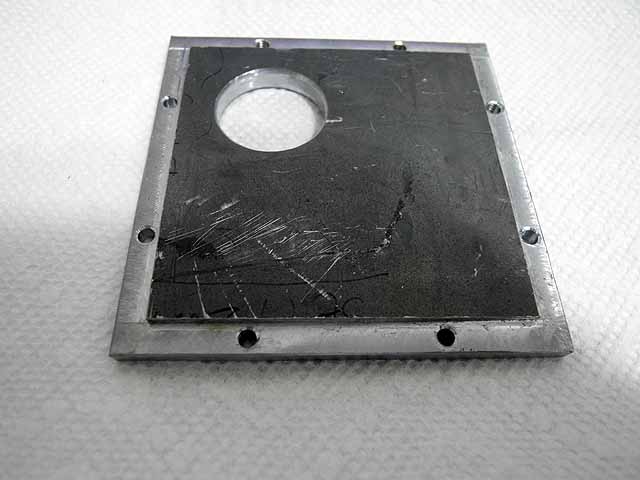

Front shield with 1.125" hole for camera to look through



Radiation Shielded Camera (11/21/2014)

Front shield with 1.125" hole for camera to look through. 1/16" overlapping joint in back



Radiation Shielded Camera (11/21/2014)

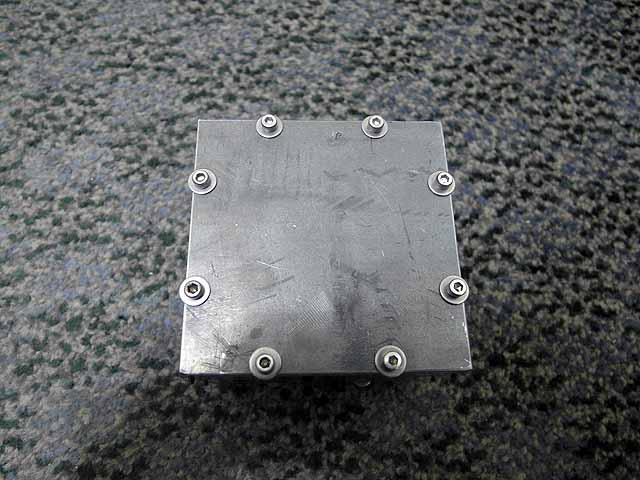

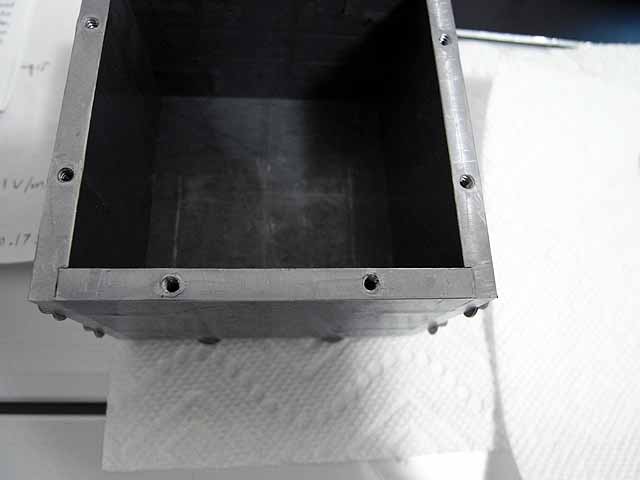

Camera box bolted together. Screws are 6-32, 1/2" depth threaded holes



Radiation Shielded Camera (11/21/2014)

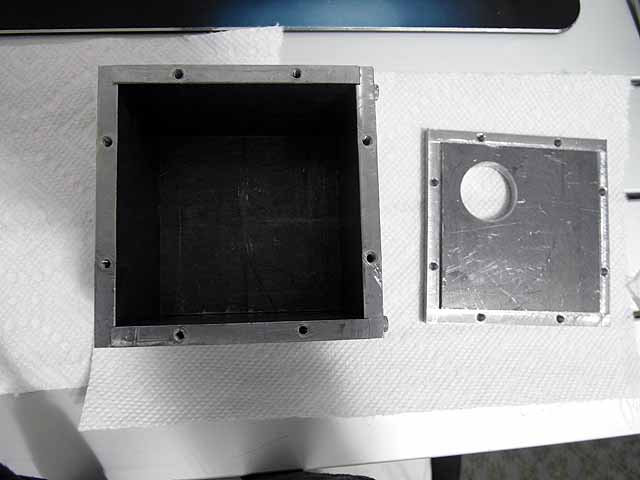

Front cover of box and box.



Radiation Shielded Camera (11/21/2014)

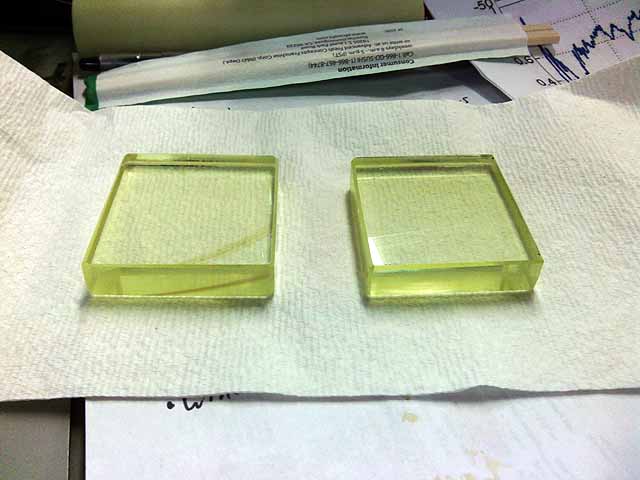

1/2" thick 2"x2" 50% lead glass windows



Radiation Shielded Camera (11/21/2014)

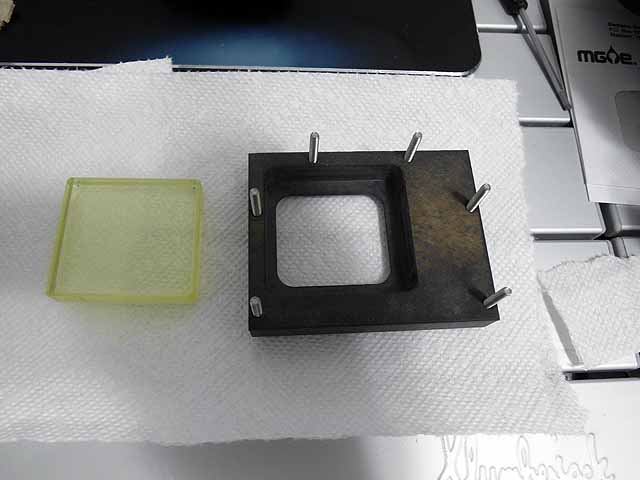

Lead glass window holder



Radiation Shielded Camera (11/21/2014)

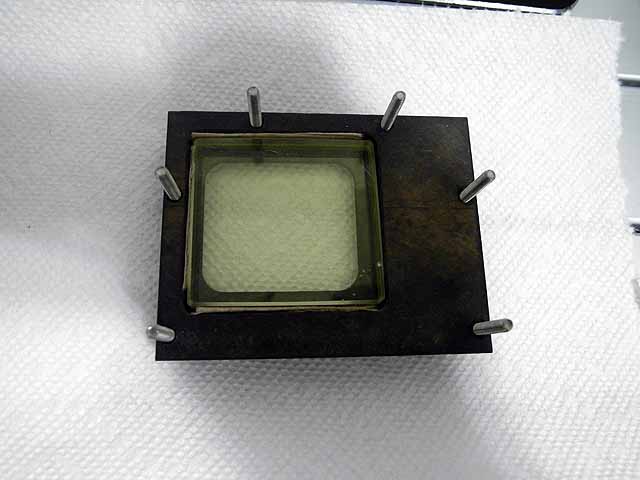

Lead glass window holder with window inserted



Radiation Shielded Camera (11/21/2014)

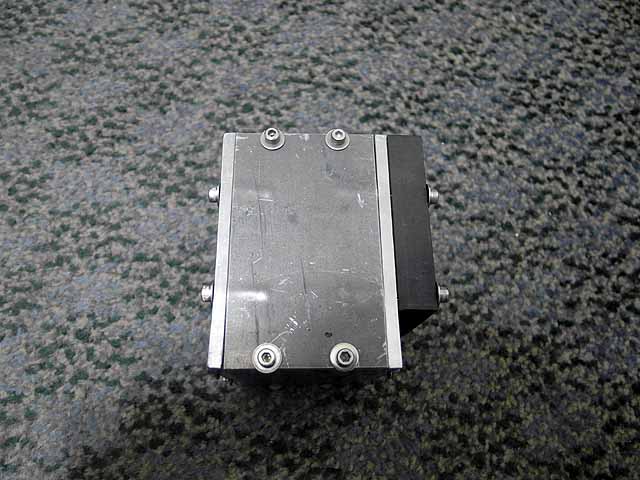

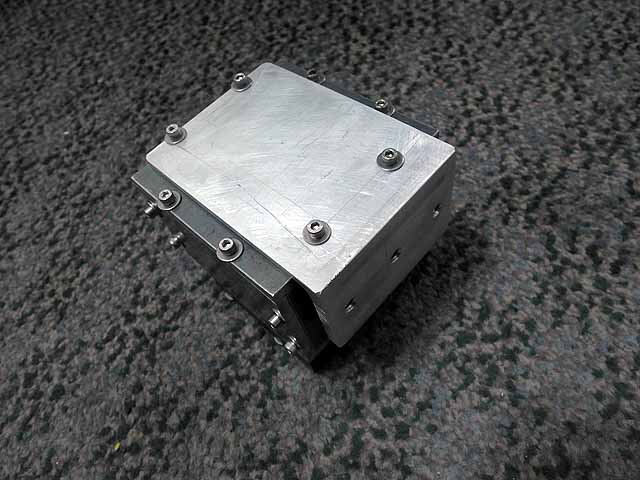

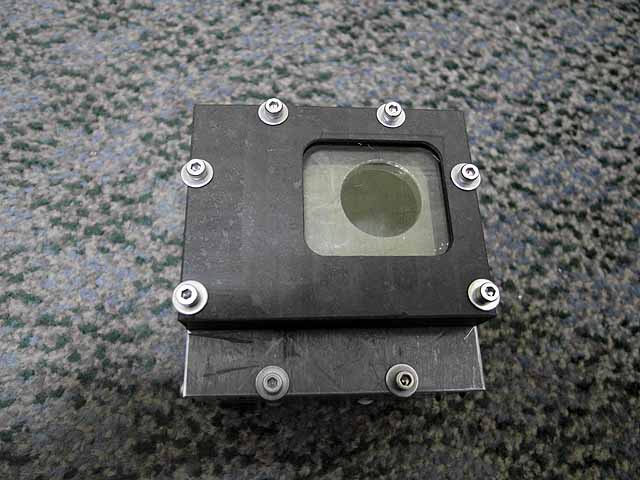

Lead glass window bolted onto camera radiation shield box



Radiation Shielded Camera (11/21/2014)

Lead glass window bolted onto camera radiation shield box



Radiation Shielded Camera (11/21/2014)

Lead glass window bolted onto camera radiation shield box



Radiation Shielded Camera (11/21/2014)

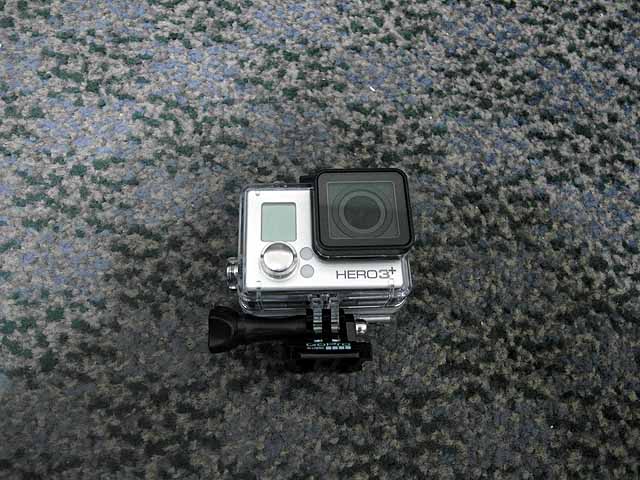

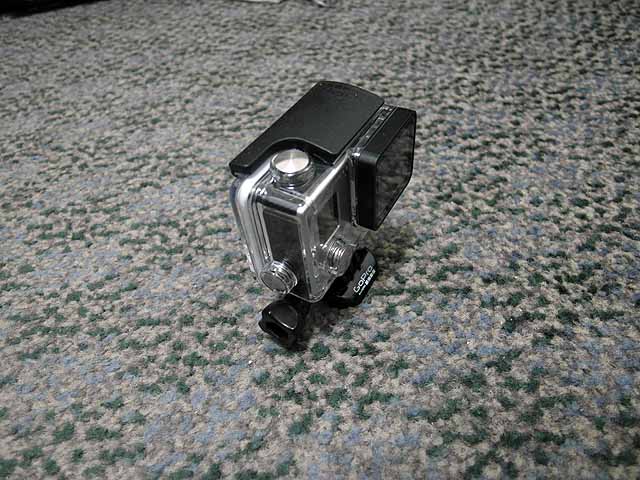

GoPro Hero 3+ silver camera



Radiation Shielded Camera (11/21/2014)

GoPro Hero 3+ silver camera



Radiation Shielded Camera (11/21/2014)

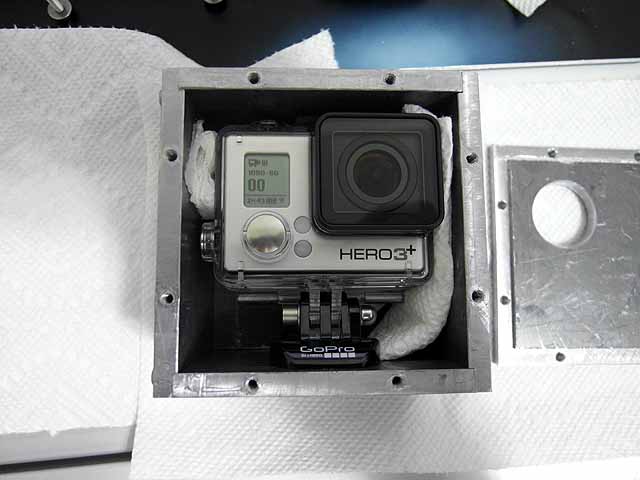

GoPro Hero 3+ silver camera mounted in box. Aligned with folded paper towels.



Radiation Shielded Camera (11/21/2014)

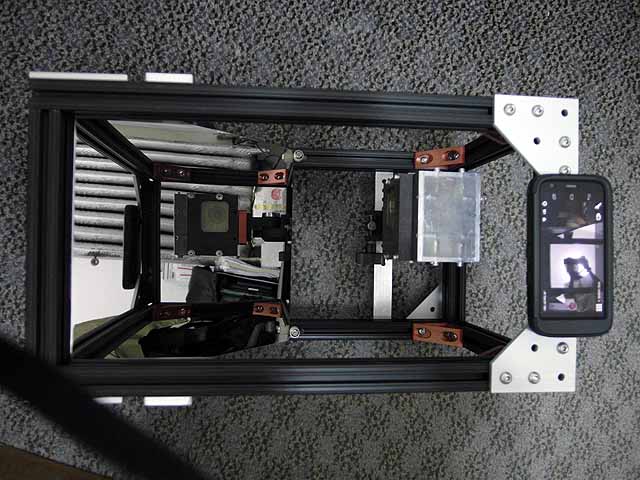

Camera in closed box transmitting video over wifi to GoPro app on cell phone. The box attenuates a lot of the signal and max range is only about 6-10 feet.



Radiation Shielded Camera (11/21/2014)

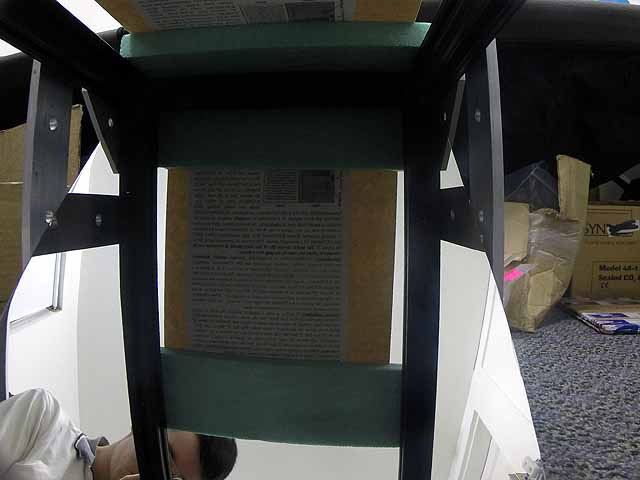

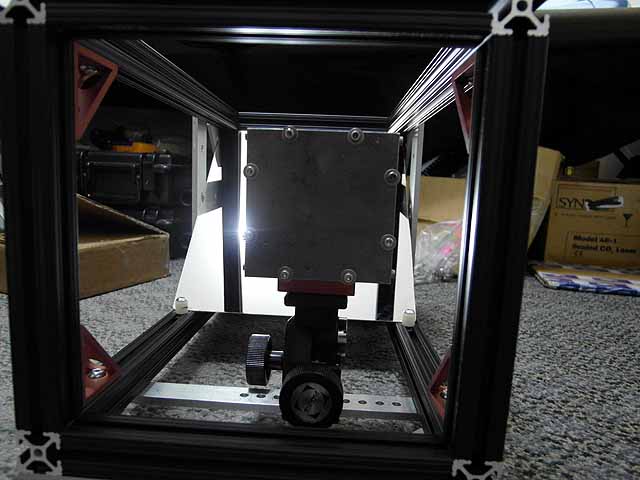

Testing position of camera in frame



Radiation Shielded Camera (11/21/2014)

Testing position of camera in frame



Radiation Shielded Camera (11/21/2014)

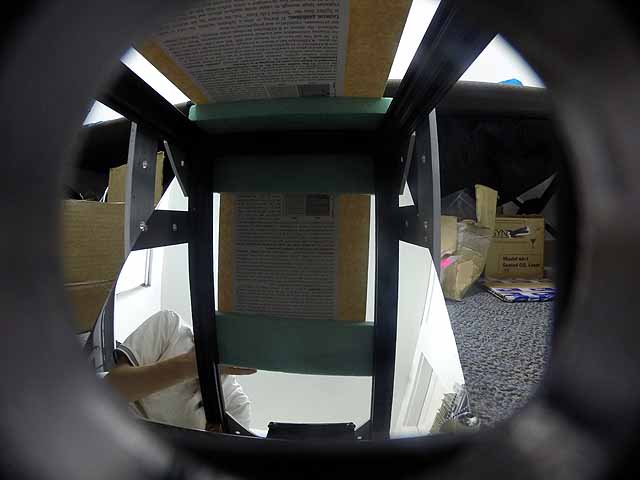

Wide fov setting



Radiation Shielded Camera (11/21/2014)

Medium fov setting



Radiation Shielded Camera (11/21/2014)

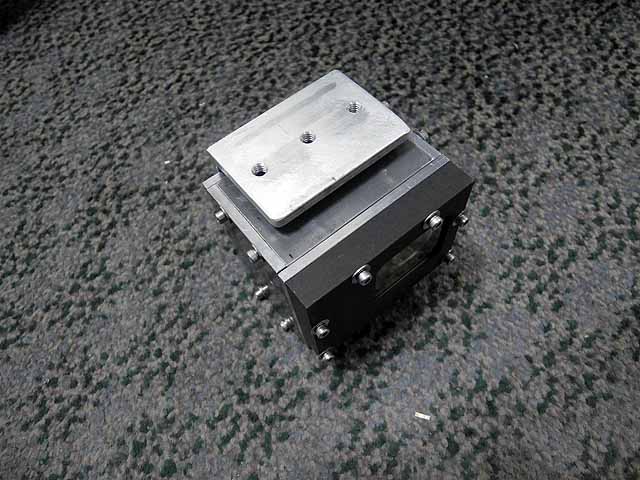

Mounting bracket to attach to tripod.



Radiation Shielded Camera (11/21/2014)

Mounting bracket to attach to tripod.



Radiation Shielded Camera (11/21/2014)

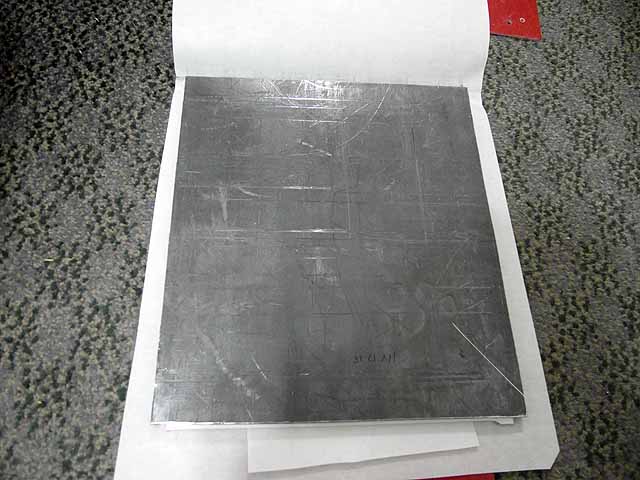

Top 1/4" thick lead shield



Radiation Shielded Camera (11/21/2014)

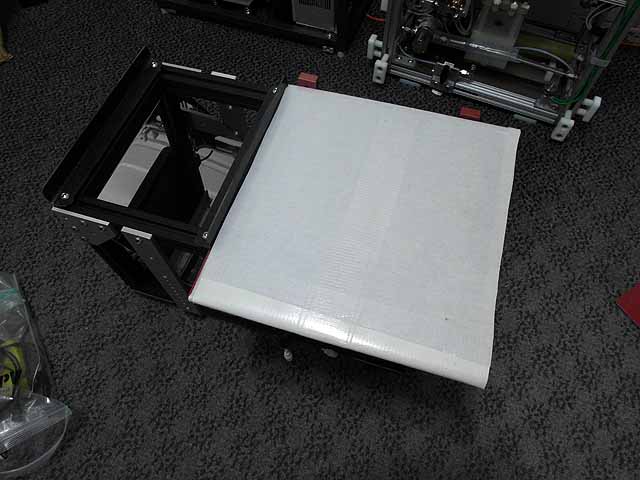

Top 1/4" thick lead shield wrapped in electrical insulation to allow collected electron beam current to be measured



Radiation Shielded Camera (11/21/2014)

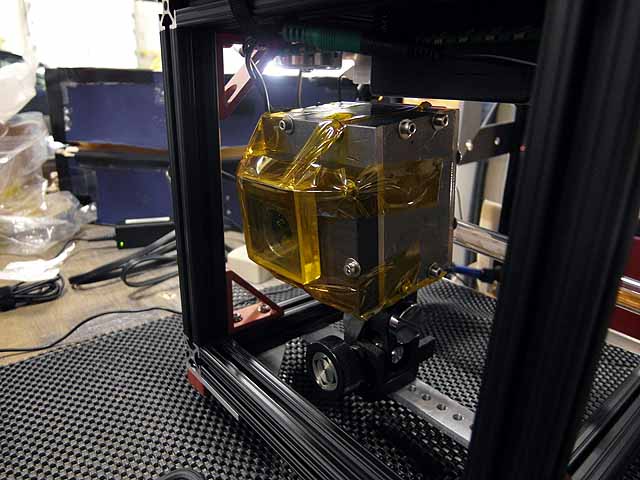

Complete shielded camera assembly



Radiation Shielded Camera (11/21/2014)

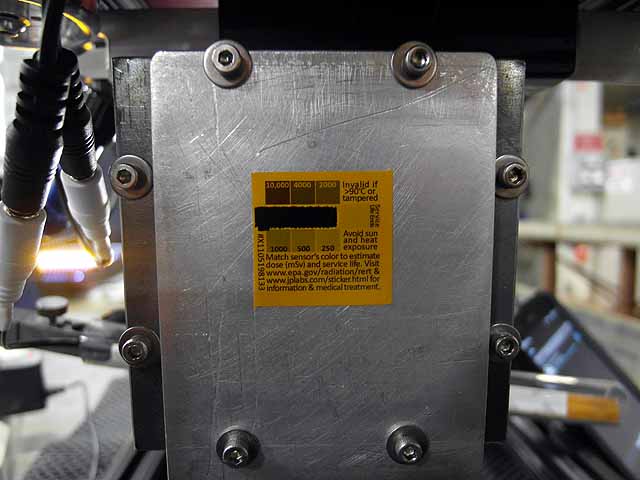

External dosimeter sticker on outside of camera box.



Radiation Shielded Camera (11/21/2014)

Additional 1/2" lead glass window added for total of 1" thick lead glass window.



Radiation Shielded Camera (11/21/2014)

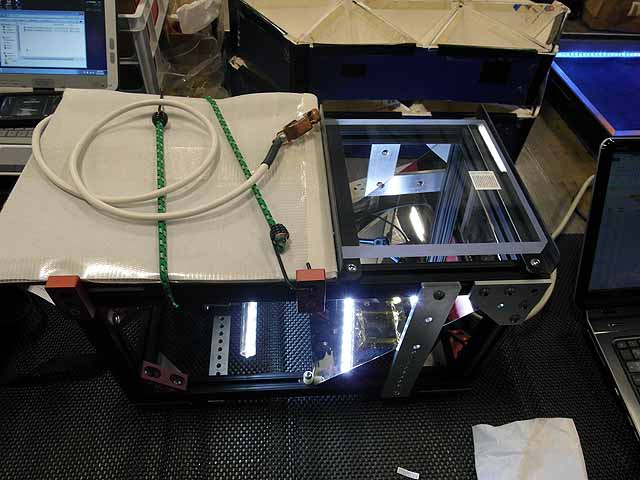

Lead shield secured, ready for irradiation tests.



Neobeam Run (11/21/2014)

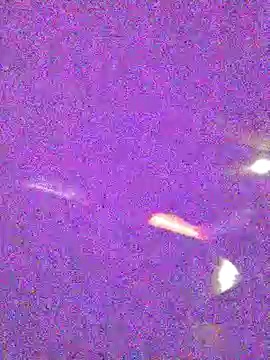

Irradiation view with unshielded lg optimus cell phone camera



Neobeam Run (11/21/2014)

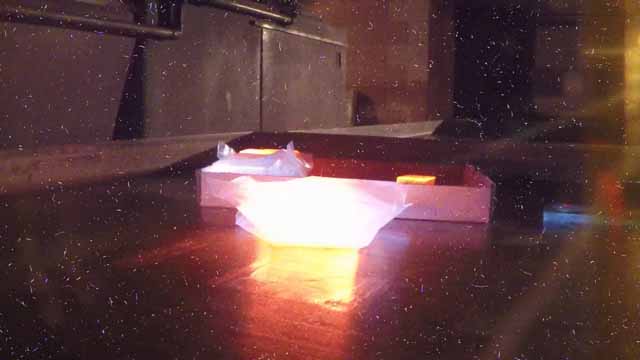

Irradiation view with shielded GoPro
