IEC Fusion Reactor Mark 3 Vacuum Hub Version 2




Overview:

New vacuum hub made out of 2.75" CF cube. Includes a digital quattro 999 vacuum gauge, and electric vacuum valves.



Vacuum Hub Upgrade (8/22/2013)

Vacuum hub with insulator, electric valve and vacuum gauge



Vacuum Hub Upgrade (8/22/2013)

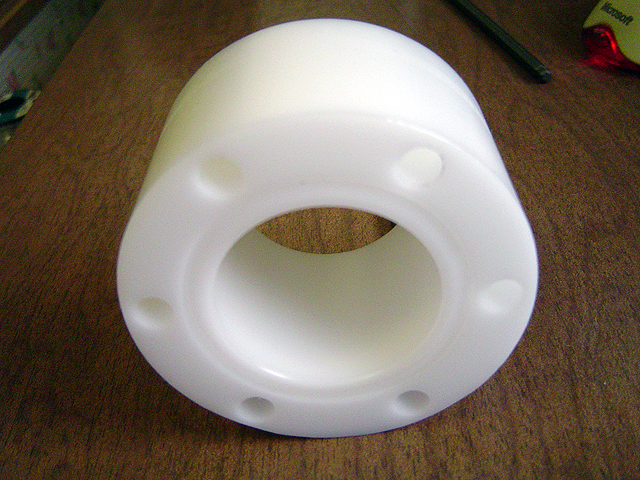

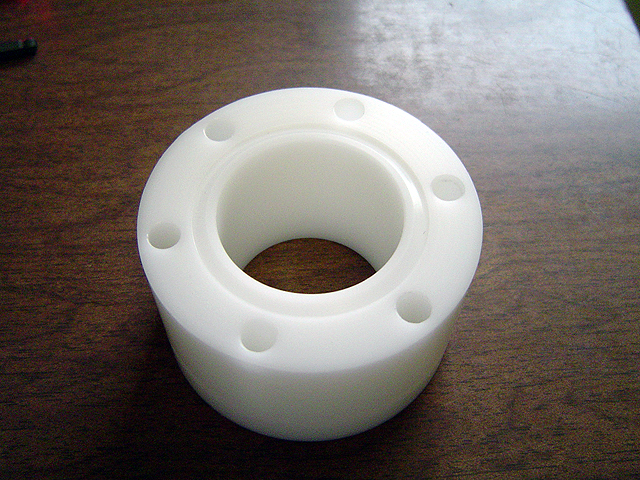

Insulator is made out of acetal(delrin) and was baked out under vacuum fro several days prior to installation to outgass condensable volatile materials.



Vacuum Hub Upgrade (8/22/2013)

Insulator is made out of acetal(delrin) and was baked out under vacuum fro several days prior to installation to outgass condensable volatile materials.



Vacuum Hub Upgrade (8/22/2013)

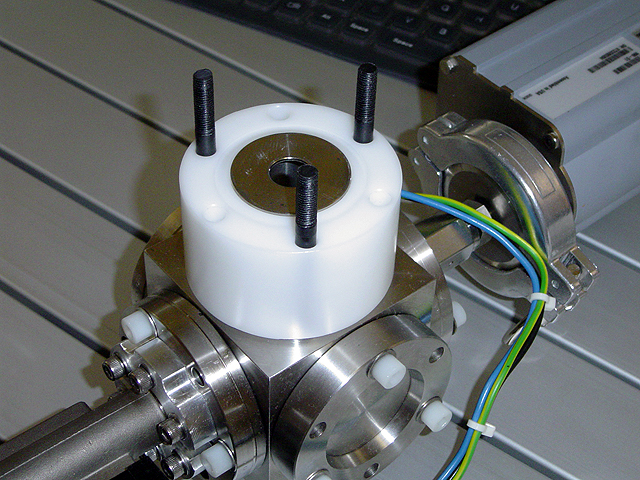

Insulator mounted with PEEK insulating rods and a stainless baffle to prevent direct plasma bombardment of the plastic which would cause outgassing.



Vacuum Hub Upgrade (8/22/2013)

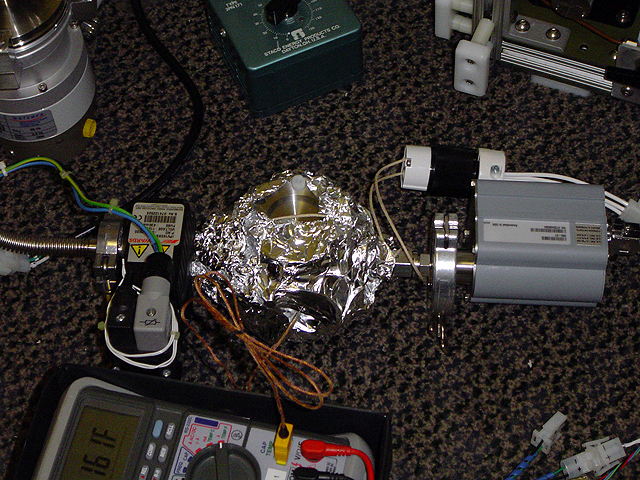

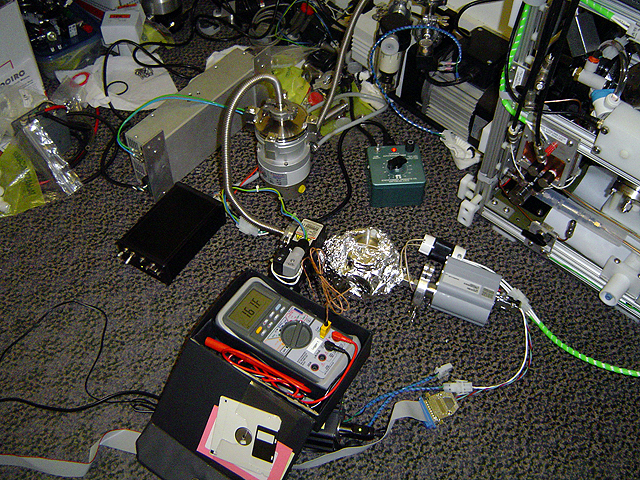

Test bakeout of cube.



Vacuum Hub Upgrade (8/22/2013)

Test bakeout of cube.



Vacuum Hub Upgrade (8/22/2013)

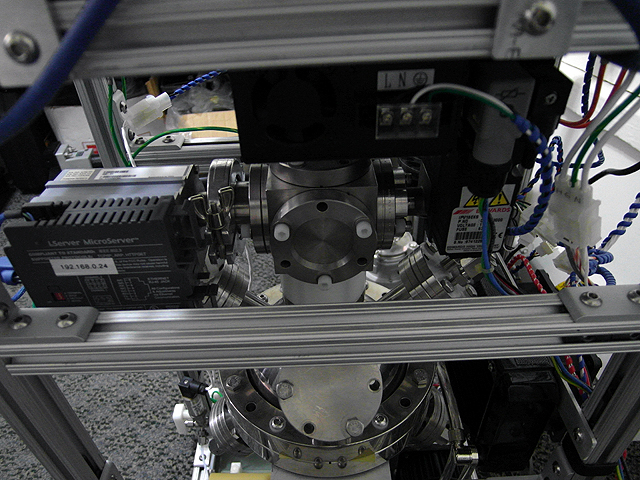

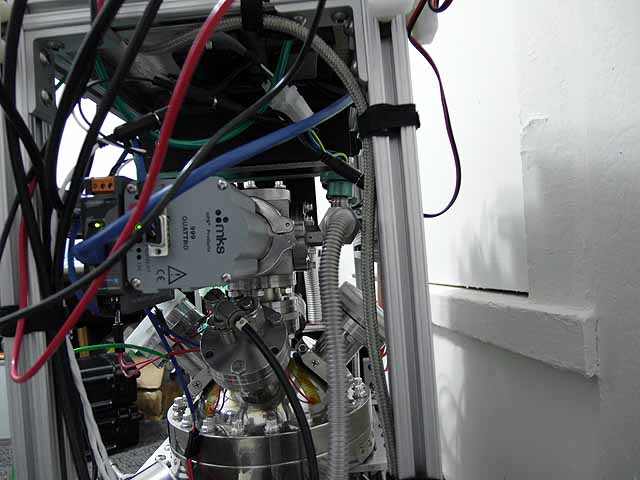

Vacuum hub installed.



Vacuum Hub Upgrade (11/15/2015)

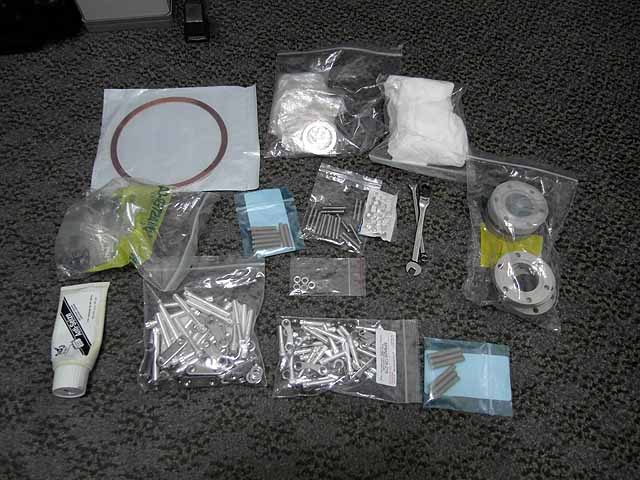

Parts to convert vacuum hub to copper o-rings and remove acetal insulator that was outgassing



Vacuum Hub Upgrade (11/15/2015)

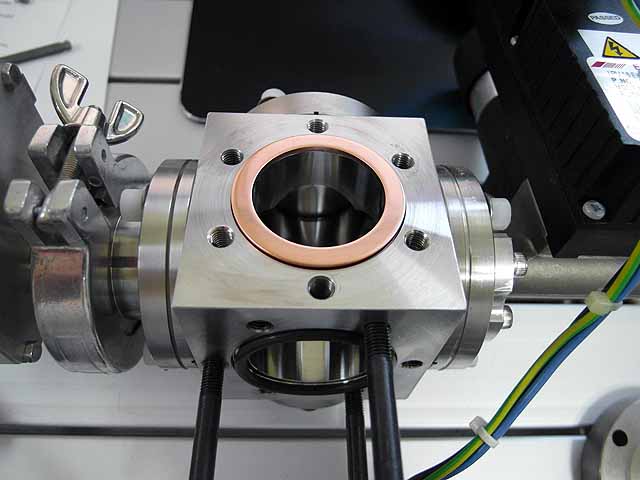

Copper o-ring



Vacuum Hub Upgrade (11/15/2015)

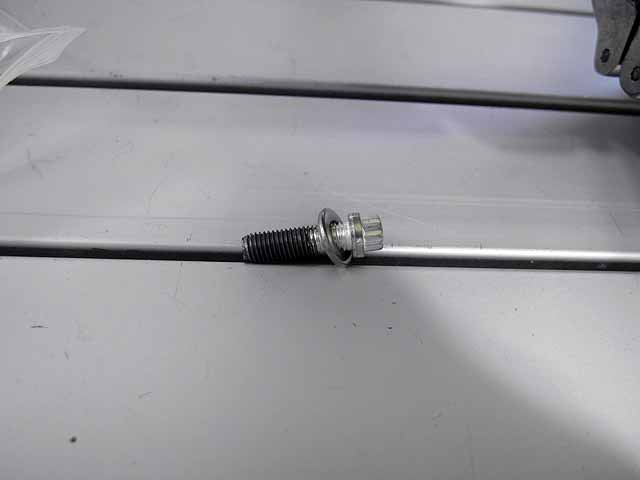

Anti-sieze coated silver plated bolts



Vacuum Hub Upgrade (11/15/2015)

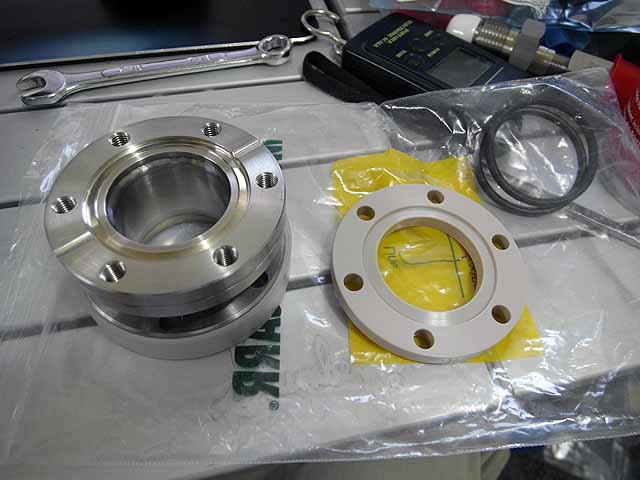

Stainless standoff and PEEK insulator for lower outgassing



Vacuum Hub Upgrade (11/15/2015)

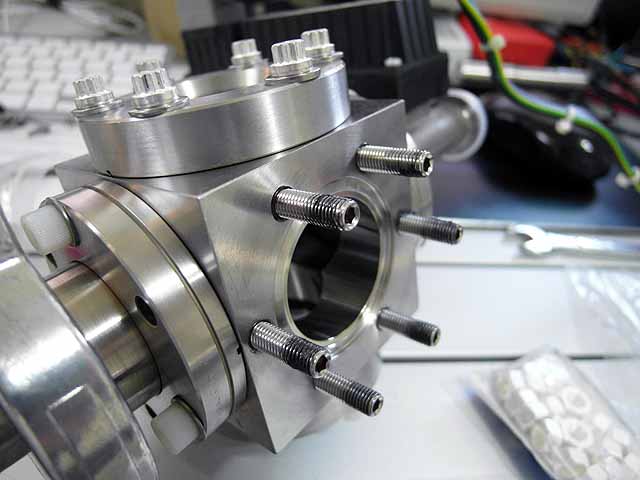

Threaded studs for close couplers



Vacuum Hub Upgrade (11/15/2015)

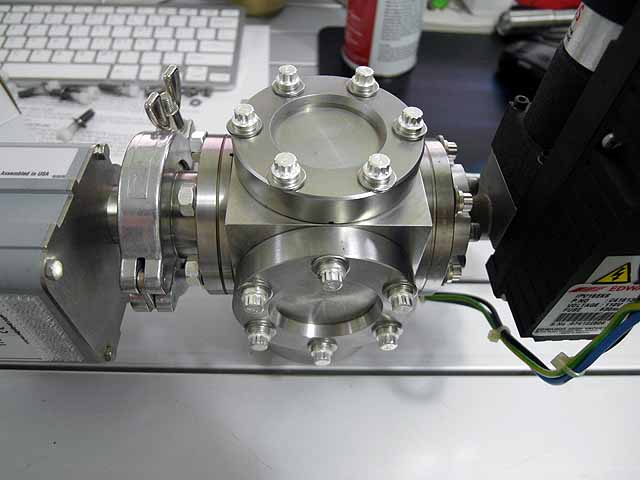

Most viton o-rings replaces with copper



Vacuum Hub Upgrade (11/15/2015)

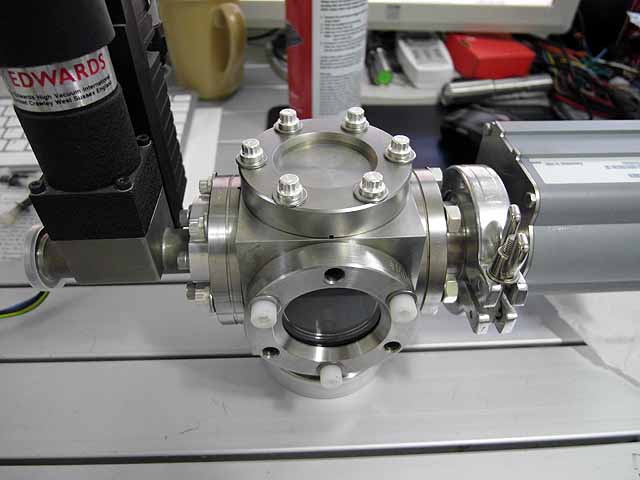

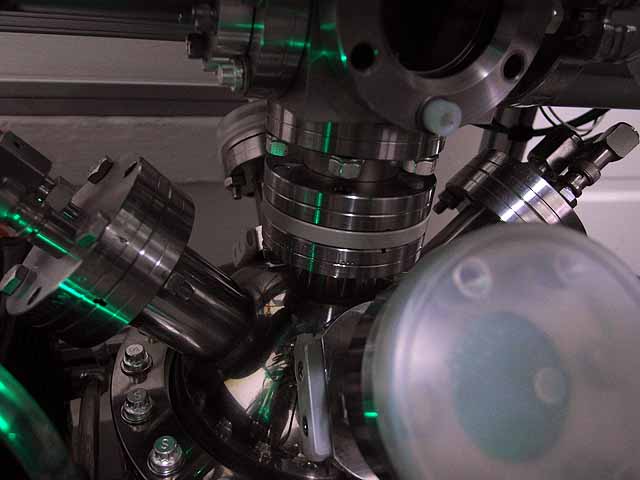

Cube front view



Vacuum Hub Upgrade (11/15/2015)

Peek insulating break



Vacuum Hub Upgrade (11/15/2015)

Deuterium manifold added to cube back



Vacuum Hub Upgrade (11/15/2015)

Deuterium manifold added to cube back
