IEC Fusion Reactor Mark 3 Inspection




Overview:

Upgrades / inspection of the vacuum chamber



Core deposition (8/22/2013)

Sputtered deposition on core interior



Core deposition (8/22/2013)

Sputtered deposition on core interior



Core deposition (8/22/2013)

Sputtered deposition on ion source face.



Core deposition (8/22/2013)

Sputtered deposition on ion source face.



Grid sputtering (8/22/2013)

Some slight sputtering from grid.



Grid sputtering (8/22/2013)

Deposition on old grid insulator



Grid sputtering (8/22/2013)

Deposition on old grid insulator



Grid sputtering (8/22/2013)

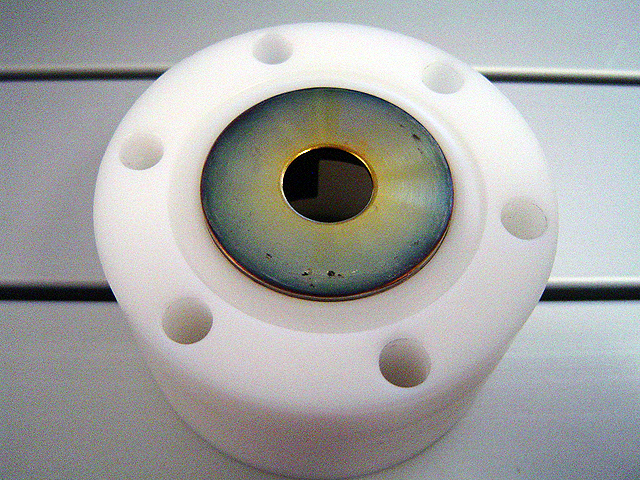

Deposition on o-ring shield.



Grid sputtering (8/22/2013)

New o-ring shield in place.



Grid sputtering (8/22/2013)

New o-ring shield in place.



Grid sputtering (8/22/2013)

Deposition on vacuum hub baffle.



Vacuum Chamber Upgrades (11/15/2015)

Parts for conveting the main vacuum chamber o-ring from viton to copper



Vacuum Chamber Upgrades (11/15/2015)

Modified(lower) mounting breclet to allow use of silver plated bolt set and insulating breaks



Vacuum Chamber Upgrades (11/15/2015)

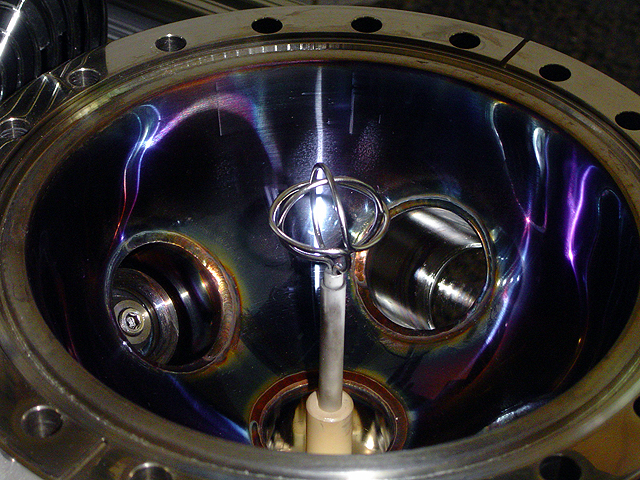

Chamber condition



Vacuum Chamber Upgrades (11/15/2015)

Deposition on walls



Vacuum Chamber Upgrades (11/15/2015)

Deposition on insulator and ion beam damage to viewport



Vacuum Chamber Upgrades (11/15/2015)

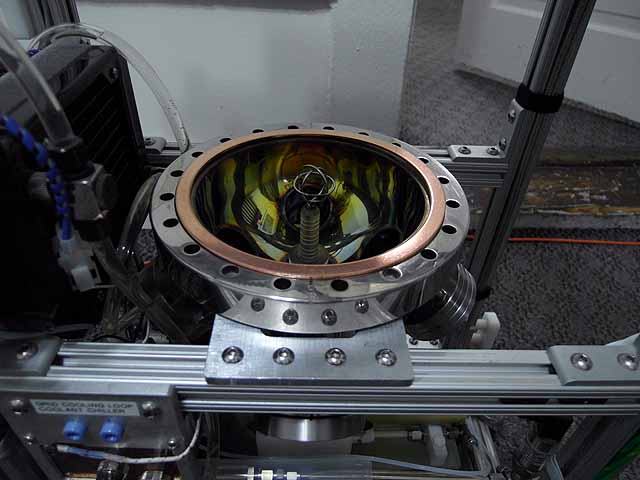

Copper o-ring installed



Vacuum Chamber Upgrades (11/15/2015)

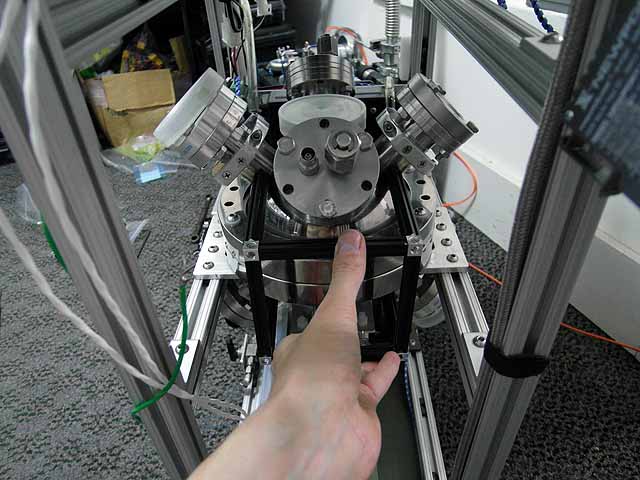

Core port alignment with jig



Vacuum Chamber Upgrades (11/15/2015)

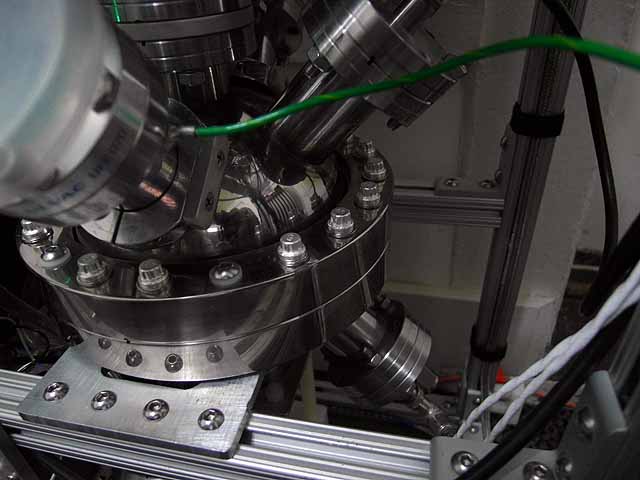

Silver plated 12pt bolts



Vacuum Chamber Upgrades (11/15/2015)

Ground wire connection



Vacuum Chamber Upgrades (11/15/2015)

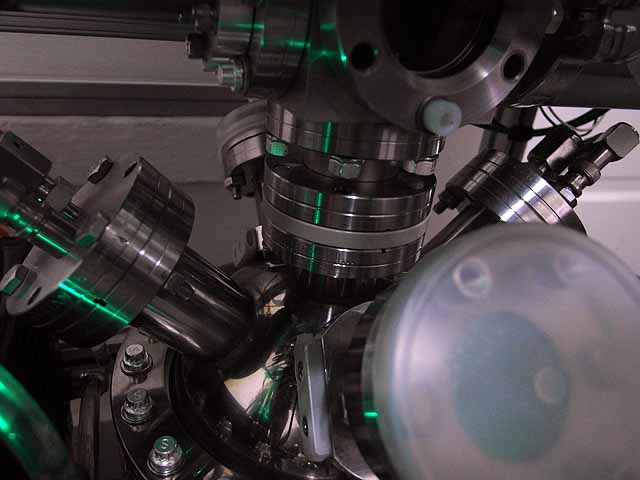

Vacuum hub connection with insulating break



Vacuum Chamber Upgrades (11/15/2015)

Bakeout heaters



Vacuum Chamber Upgrades (11/15/2015)

Bakeout heaters installed



Vacuum Chamber Upgrades (11/15/2015)

Bakeout heaters installed
