Overview:

The Hitek 3000 series power supply will provide +20kV at 75mA to power a set of 4 ion injectors.

Hitek Power Supply (8/10/2006)

Hitek power supply series 3000 (older OL3000 equivalent)

• Manual

Hitek Power Supply (8/10/2006)

Front panel showing power switch, HV on/off switch, local/remote switch, voltage adjustment knob, indicator LED's and panel meters.

Hitek Power Supply (8/10/2006)

Back panel showing HV connector, 3 phase power connector, and user interface port.

Hitek Power Supply (8/10/2006)

Top cover open.

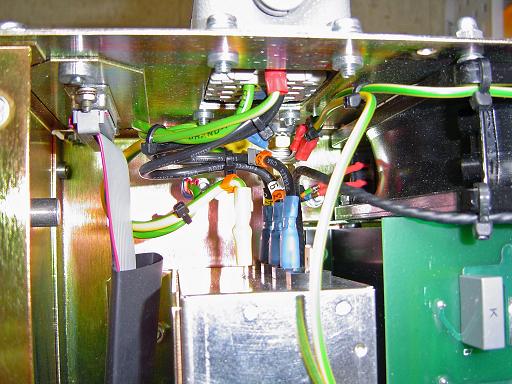

Hitek Power Supply (8/10/2006)

Power connector, interior view.

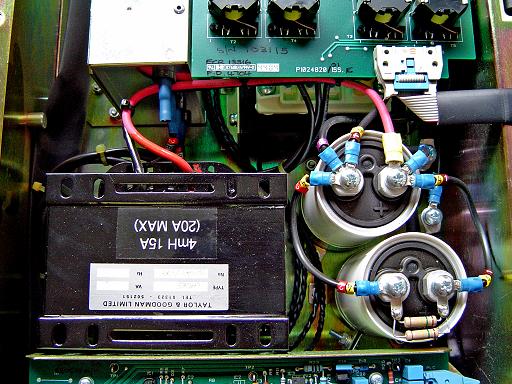

Filter (8/10/2006)

Inductor and capacitor filters for the IGBT drivers.

IGBT Drivers (8/10/2006)

IGBT drivers switch power to the ferrite transformer.

Ferrite Transformer (8/10/2006)

Ferrite transformer supplies power to multiplier stack.

Logic Board (8/10/2006)

Controlles switching network.

Logic Board (8/10/2006)

Removed from mounts.

Logic Board (8/10/2006)

Bottom view.

Logic Power Supply (8/10/2006)

Although the power supply was designed for 208v 3 phase, taping power of os two of the phases, the wide input range(100-240V AC) of the logic board power supply modules will allow the supply to be run off 120V AC single phase.

Logic Board (8/10/2006)

Relays to charge up HV driver.

Logic Board (8/10/2006)

Bottom view.

Power Supply Connector (8/10/2006)

Harting Han 6E female connector (screw terminal) for connecting the power supply to the power mains.

Power Supply Connector (8/10/2006)

Connector fits into power supply receptacle.

Power Cord (8/10/2006)

Power cord is attached to harting connector.

Power Supply Connector (8/10/2006)

Power supply interlock jumper enables HV output and 120v AC single phase line is connected to terminals 1(line) and 3(neutral) on the 3 phase power input allowing the supply to operate on single phase.

Power Supply (8/10/2006)

Power supply turns on.

Power Supply (8/10/2006)

HV is enabled.

Power Supply (8/10/2006)

HV is tested open circuit to 5kv.
