IEC Fusion Reactor Mark 3 Fluorinert Cooled Grid, Version 2
IEC Fusion Reactor Mark 3 Fluorinert Cooled Grid, Version 2 |
|
 |
 |
 |
 |
 |
 |
 |
Overview: Modifications to the original cooled grid design. Replaces alumina vacuum feed throughs with fused quartz feed throughs, and adds an internal fluted boron nitride shroud to prevent a conductive metalization path from forming down the insulator stalk. Also added is a modified coolant line feed through plate that used o-rings instead of swagelok ferules on the vacuum seal, and a redesign of the HV input connection to work with the spellman switching power supply.
|
|
 |

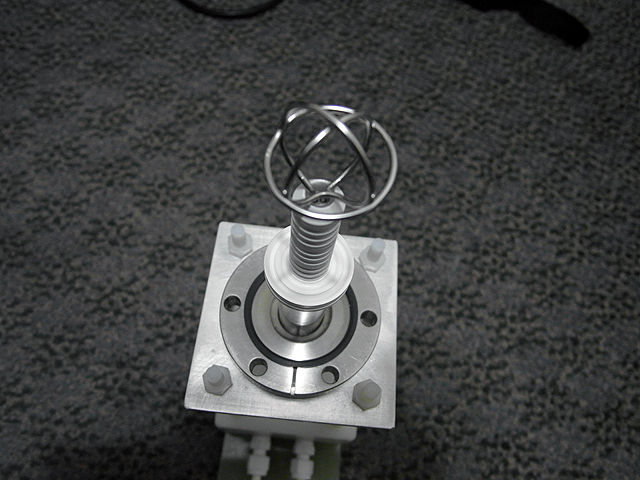

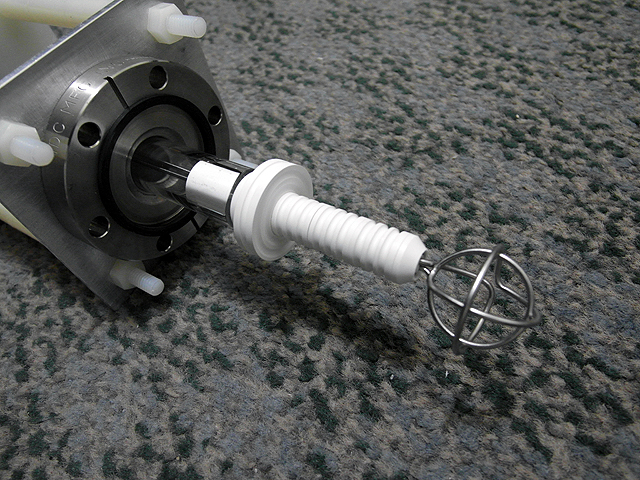

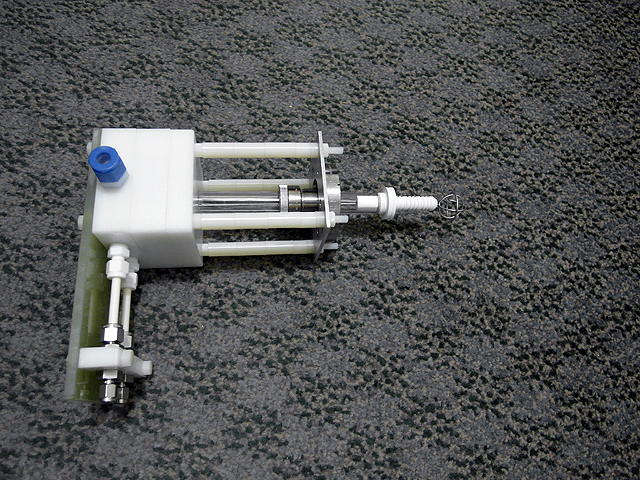

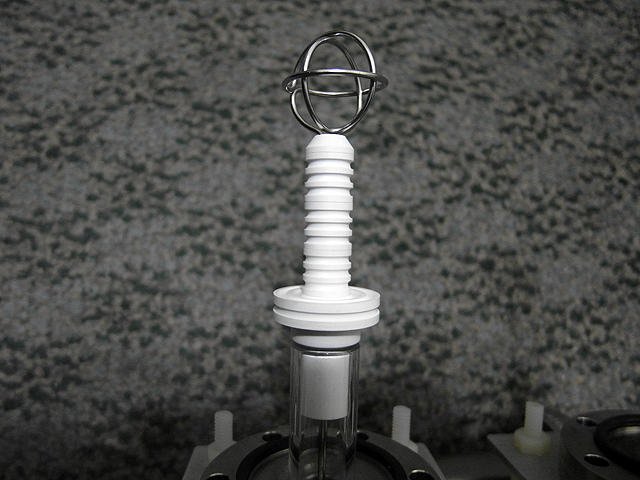

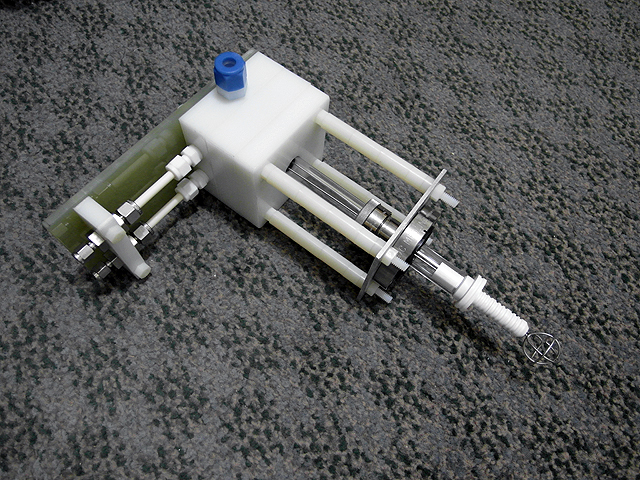

Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. |
 |
Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. |
 |
Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. |
 |
Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. |
 |
Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. |
 |
Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. compared to old cooled grid with alumina insulator. |
 |
Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. compared to old cooled grid with alumina insulator. |
 |
Grid Cooling Assembly (8/21/2013) With new boron nitride and quartz insulator. compared to old cooled grid with alumina insulator. |
 |

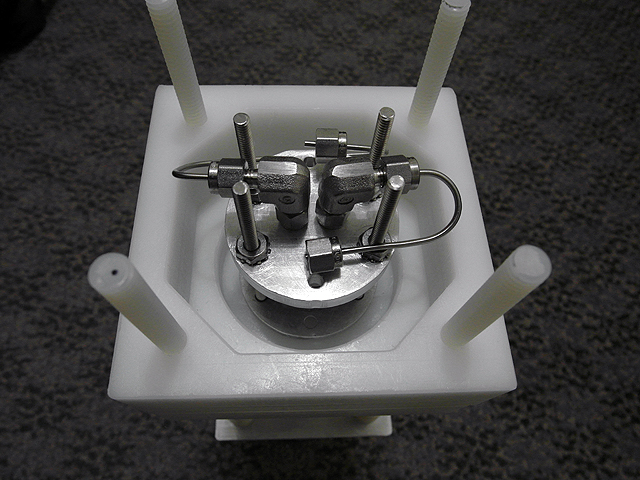

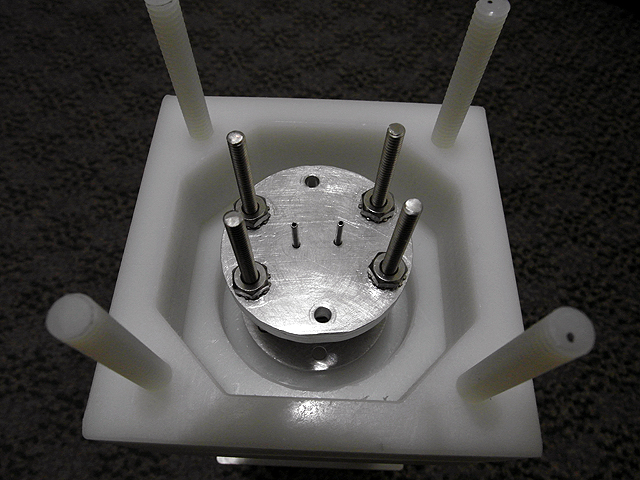

Grid Cooling Assembly (8/21/2013) Cooling line feed through. |
 |
Grid Cooling Assembly (8/21/2013) Cooling line feed through. |
 |

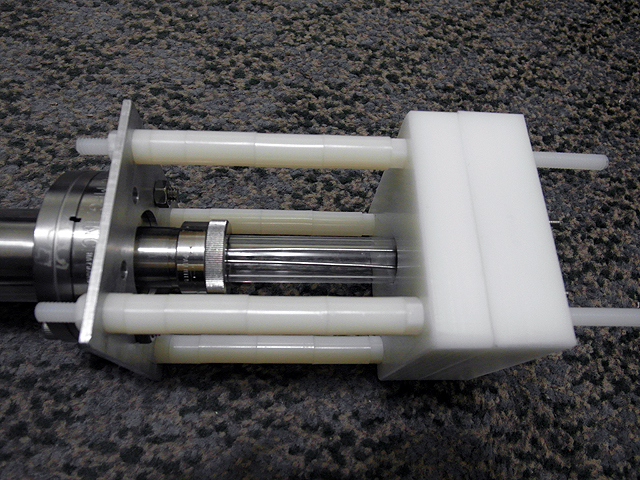

Grid Cooling Assembly (8/21/2013) Quartz insulator tube. |
 |

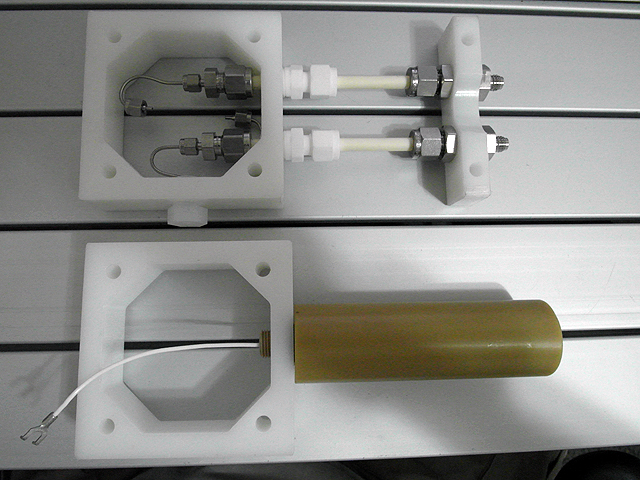

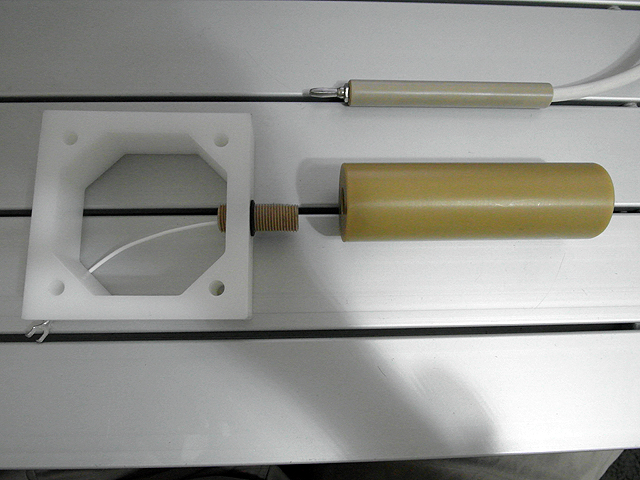

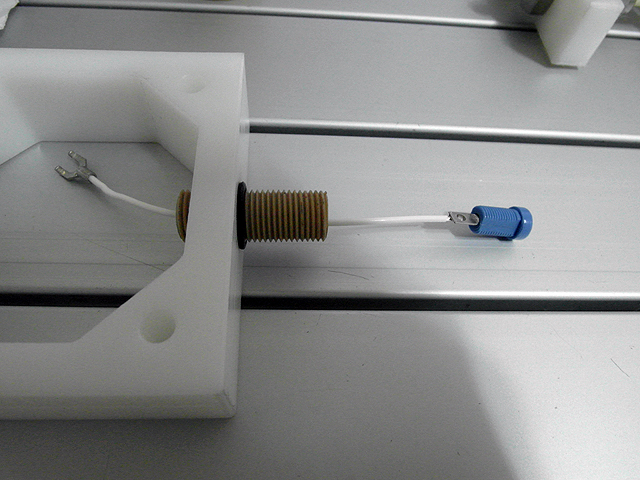

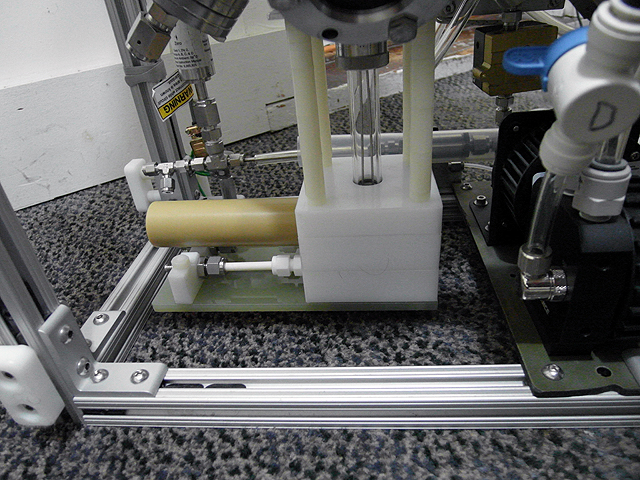

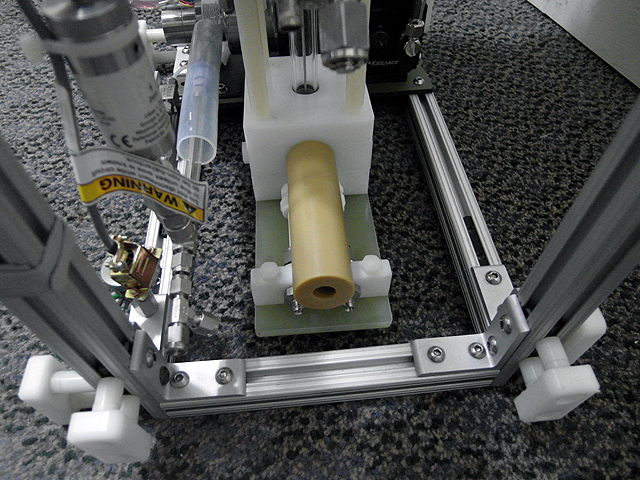

Grid Cooling Assembly (8/21/2013) HV feed through. |
 |
Grid Cooling Assembly (8/21/2013) HV feed through. |
 |
Grid Cooling Assembly (8/21/2013) HV feed through. |
 |
Grid Cooling Assembly (8/21/2013) HV feed through. |
 |
Grid Cooling Assembly (8/21/2013) HV feed through. |
 |
Grid Cooling Assembly (8/21/2013) HV feed through. |
 |
Grid Cooling Assembly (8/21/2013) HV feed through. |
 |

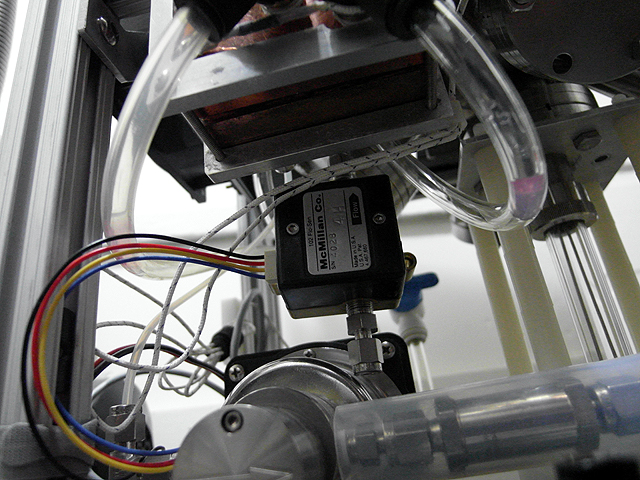

Grid Cooling Assembly (8/21/2013) Coolant flow sensor. |
 |

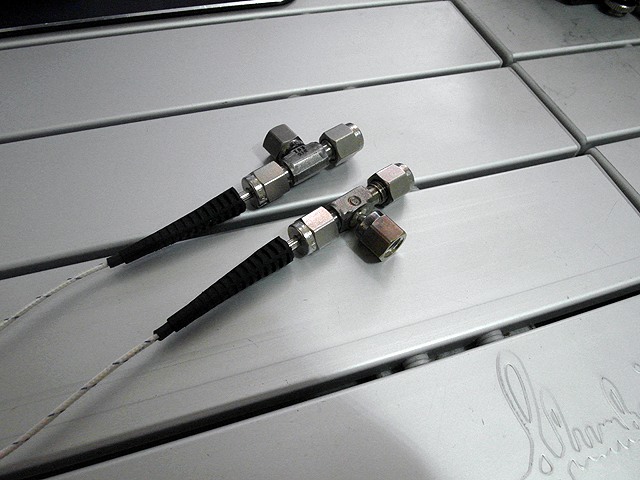

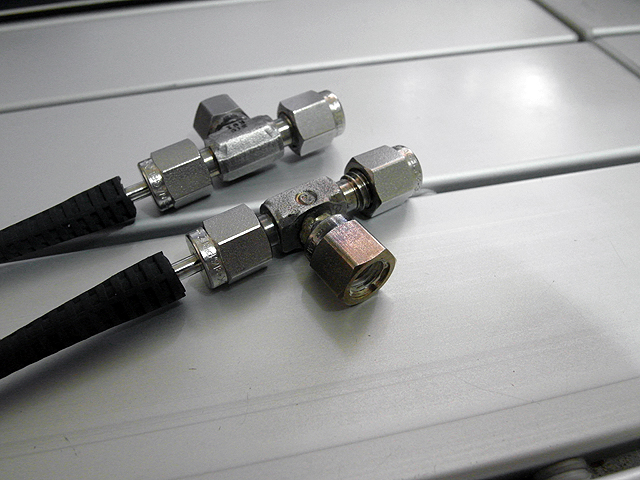

Grid Cooling Assembly (8/21/2013) Coolant temperature probes. |
 |
Grid Cooling Assembly (8/21/2013) Coolant temperature probes. |
 |

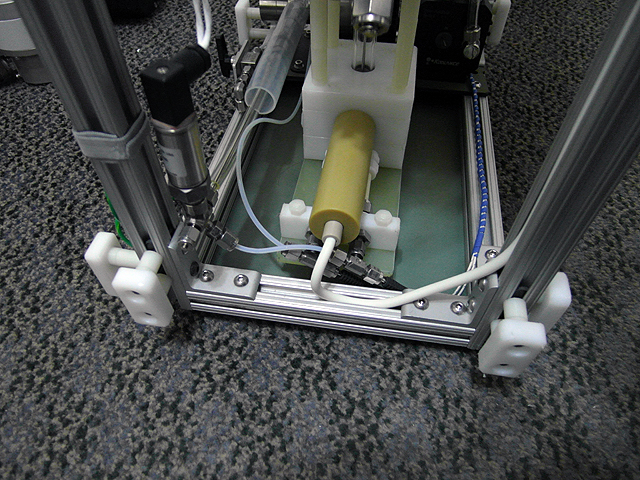

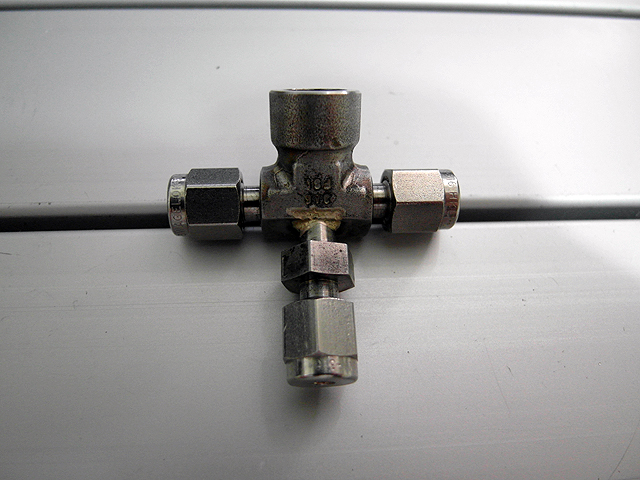

Grid Cooling Assembly (8/21/2013) Coolant pressure sensor adapter. |
 |
Grid Cooling Assembly (8/21/2013) Coolant pressure sensor adapter. |
 |

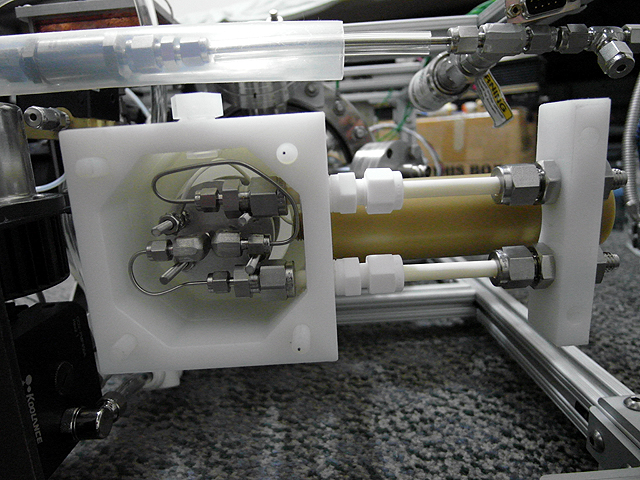

Grid Cooling Assembly (8/21/2013) Coolant line connections |
