RTFTechnologies Mark 2 IEC Fusion Reactor

IEC Mark 2 Construction

Updates:

The Mark 2 IEC fusion reactor design completed.

Part acquisition / construction in progress.

Parts Inventory List (not complete)

(Bold parts not acquired)

#	Component	Required	Acquired	Supplier (Alternate)	Part Number	Price ea. (Alt)

	Main Core
	4" diameter 304 SS Hemisphere	2	3	Sharpe Products	H400-SS	$11.61
	4" ISO 304 SS Clamp Flange	2	5	ebay (LDS)	(ISO100-400-SF)	$2.99 ($65)
	ISO 100 Aluminum clamps	4	4	LDS	ISO63/100-DC	$3.95
	ISO 100 SS Centering ring	1	1	LDS	ISO100-400-SR-S	$25
	316-SS Wire 0.032"	91'	91'	McMaster-Carr	89045K34	$9.22
	NW-40 long weld stub	10	10	e-bay (LDS)	(NW40-150-LF)	$2.50 ($17.50)


	Feed Through
	2.75" CF 20,000V & 1A	1	1	e-bay (ceramaseal)	( 16703-03-CF )	$61 ($230)
	High Alumina Ceramic Tube	1	1	McMaster-Carr	8746K17	$5.98
	304 SS Tubing 7 Gauge	1	1	McMaster-Carr	8987K543	$12.97

	Reactor Vacuum Hub
	2.75" CF cross	1	1	e-bay (LDS)	(275-150-X)	$10 ($100)
	2.75" CF blank off	1	1	e-bay (LDS)	(275-000)	$8 ($12)
	2.75" CF 8 terminal feedthrough	1	1	e-bay (various)	(NA)	$46 (about $400)
	2.75" CF to NW-25	1	1	LDS	NW25x275	$48
	NW-25 thin wall vacuum hose 20"	1	1	e-bay (LDS)	(NW25-100-MH20)	$25($165)
	NW-25 o-ring	10	10	e-bay (LDS)		$2

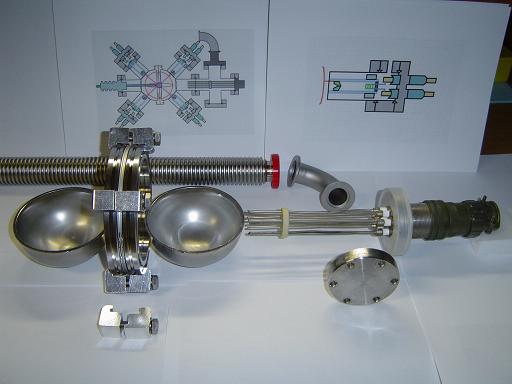

Components:

Acquired components placed in front of CAD design. Hemispheres will be machined and attached to flanges (center). 8 pin feed through (right) will connect to internal instrumentation in vacuum hub. NW-25 metal vacuum hose will connect reactor to vacuum system.

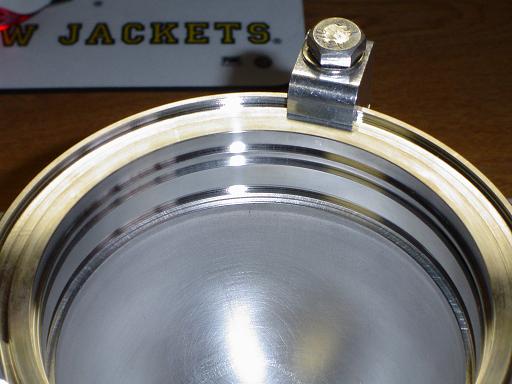

Main Flange:

Hemisphere interfaces with main flange where it will be brazed into place.

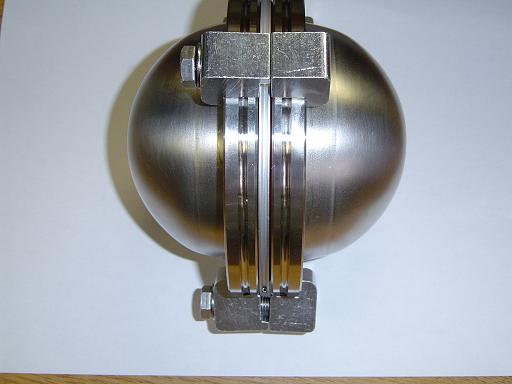

Sphere test:

Both hemispheres fit into flanges.

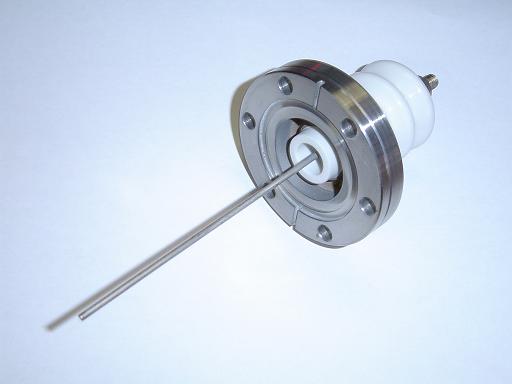

High Voltage Feedthrough:

2.75" CF 20kV feedthrough will connect HV power supply to center grid.

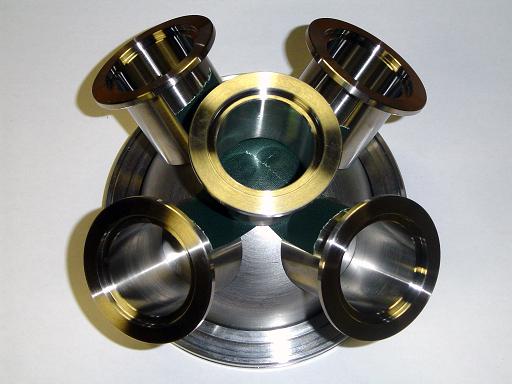

Ion Injector Ports:

NW-40 ports taped in approximate positions on reactor core.

Useful links:

http://www.fusor.net/ Open Source Fusion Research Consortium.
