Faxitron DX-50 Cabinet X-ray Teardown




Overview:

Teardown of a Faxitron DX-50 cabinet x-ray system, the unit was damaged in shipping resulting an a broken x-ray tube and bad power supply. The unit is dismantled and analyzed.

Files:

Links:



Faxitron DX-50 (2/10/2019)

Faxitron DX-50 x-ray unit



Faxitron DX-50 (2/10/2019)

Teardown video part 1



Faxitron DX-50 (2/10/2019)

Teardown video part 2



Faxitron DX-50 (2/10/2019)

Hamamatsu sensor setup



Faxitron DX-50 (2/10/2019)

X-ray imaging chamber with rotating shield door.



Faxitron DX-50 (2/10/2019)

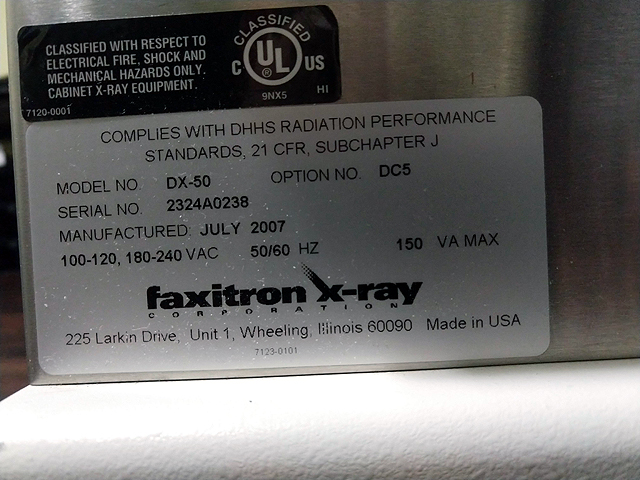

DC5 option for 50x50mm detector



Faxitron DX-50 (2/10/2019)

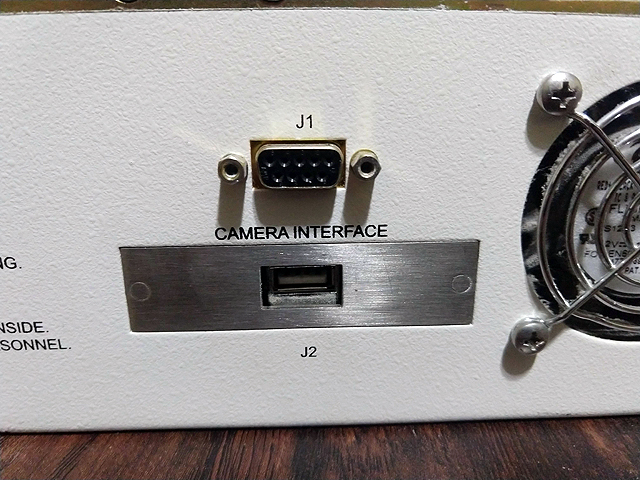

Serial interface for controlling x-ray source and USB connector for controlling Hamamatsu flat panel detector



Faxitron DX-50 (2/10/2019)

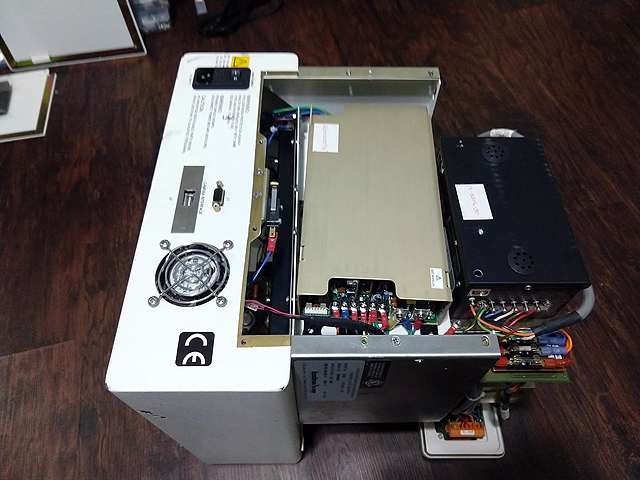

Astec LPQ-252-C power supply and Gamma High Voltage XR15-35P/M530A power supply



Faxitron DX-50 (2/10/2019)

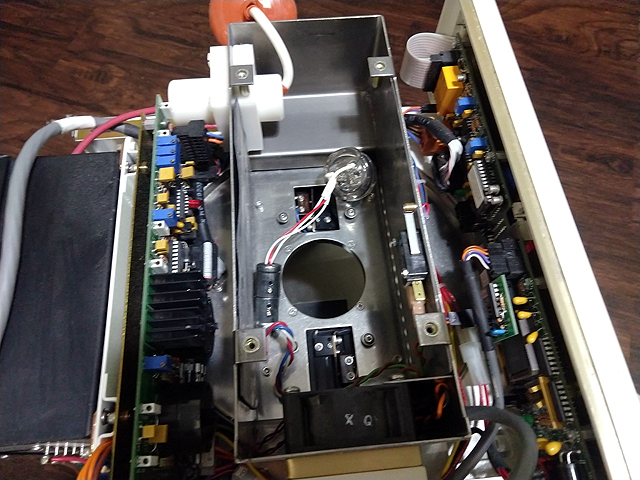

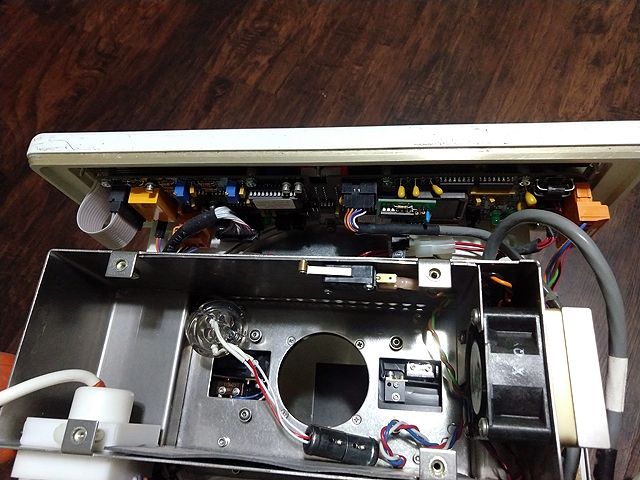

Top of unit with cover removed and broken x-ray tube removed



Faxitron DX-50 (2/10/2019)

Logic board behind front panel



Faxitron DX-50 (2/10/2019)

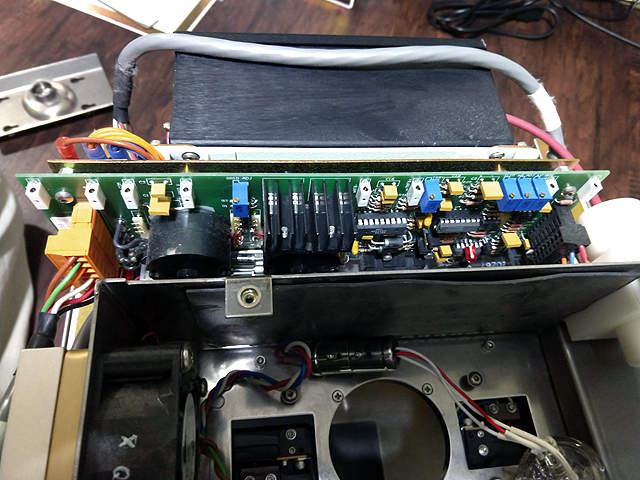

X-ray tube control board



Faxitron DX-50 (2/10/2019)

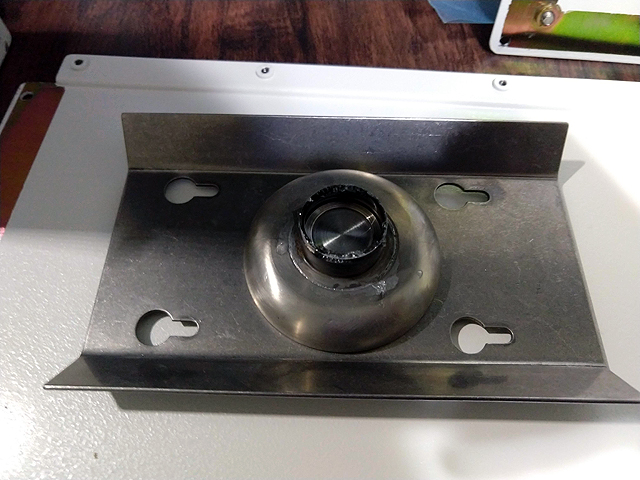

Beryllium window from broken x-ray tube



Faxitron DX-50 (2/10/2019)

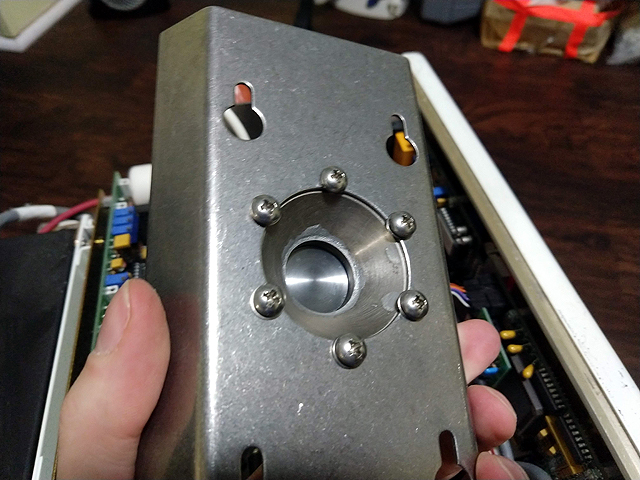

Beryllium window from broken x-ray tube



Faxitron DX-50 (2/10/2019)

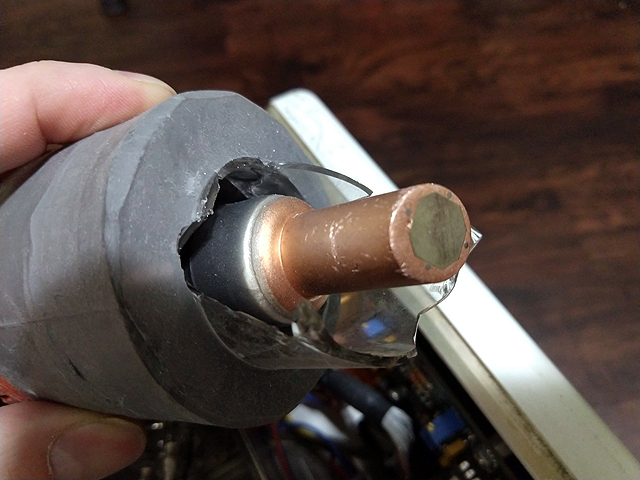

Molybdenum anode from broken x-ray tube



Faxitron DX-50 (2/10/2019)

Cathode and control grid from broken x-ray tube



Faxitron DX-50 (2/10/2019)

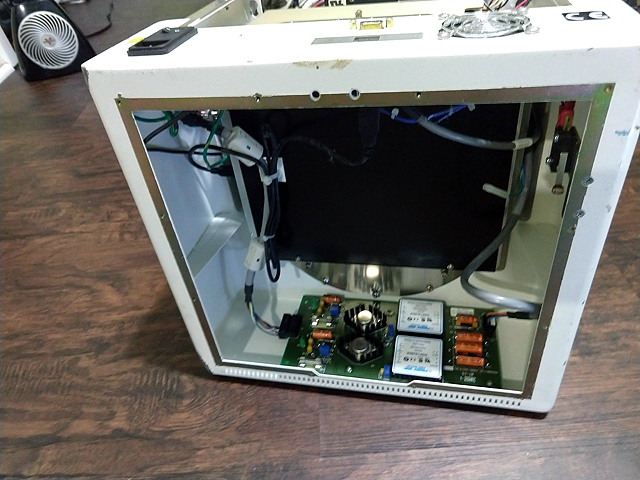

Bottom of unit with Hamamatsu C9730DK-11 flat panel detector



Faxitron DX-50 (2/10/2019)

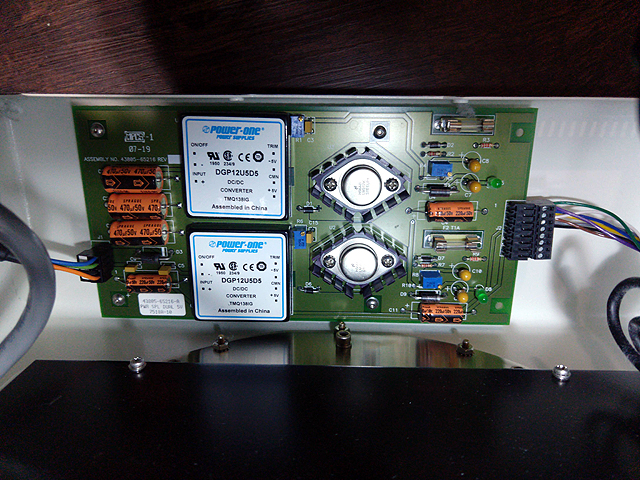

Power supply board for flat panel detector



Faxitron DX-50 (2/10/2019)

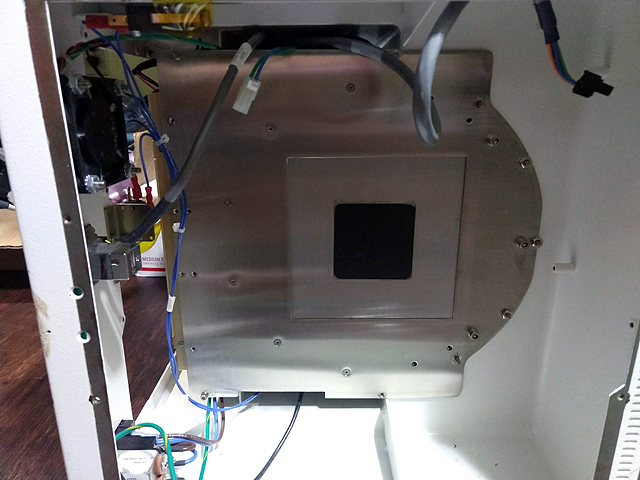

Bottom of x-ray enclosure with detector removed.



Faxitron DX-50 (2/10/2019)

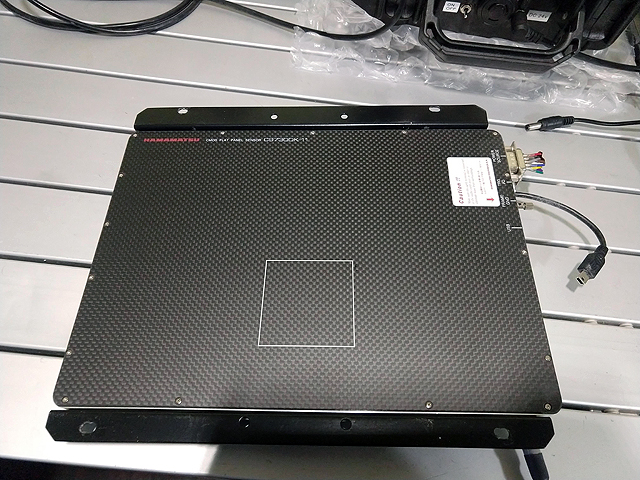

Hamamatsu C9730DK-11 flat panel detector



Faxitron DX-50 (2/10/2019)

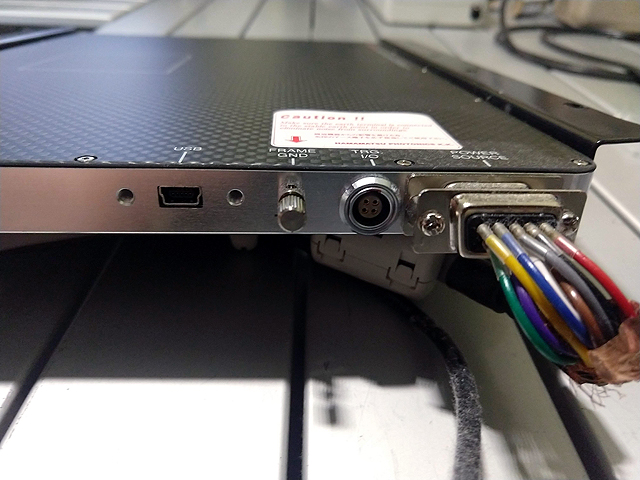

Hamamatsu C9730DK-11 flat panel detector USB port, trigger connector, and power supply port
