A compact portable turbomolecular pump station was constructed

Portable Turbo Station (6/24/2017)

Compact turbo station in pelican 1200 case, 9.68" x 4.87" x 10.62" inches, runs off of 24V wall adapter. Internal DC-DC converter allows operation from 6-36V allowing operation on battery power

Portable Turbo Station (6/24/2017)

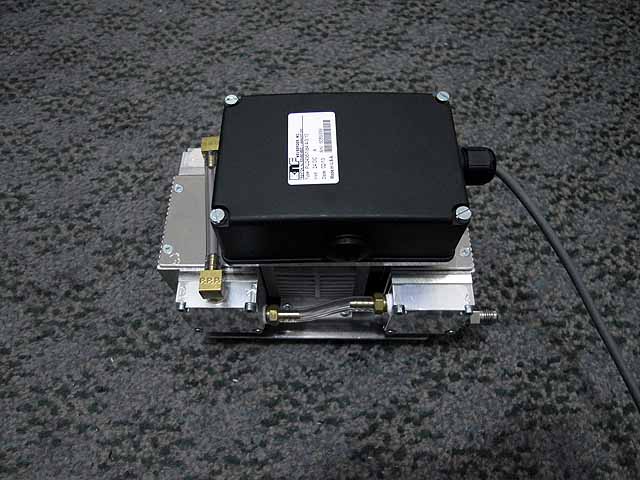

Quad stage diaphragm pump, capable of ~500mTorr ultimate vacuum.

Model: KNF 84.4

Portable Turbo Station (6/24/2017)

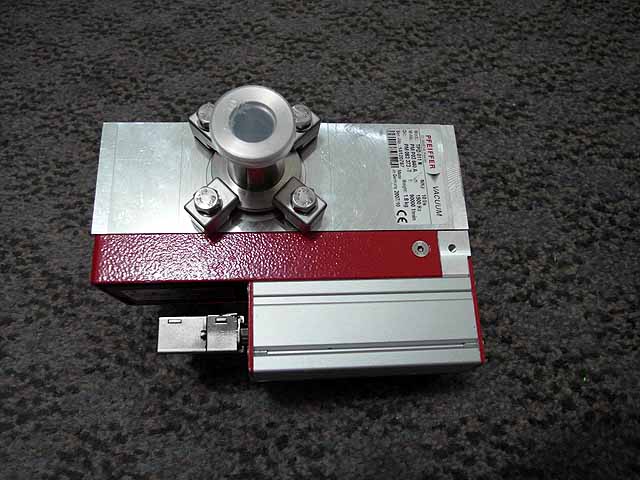

Pfeiffer TPD-011, (older version of the HiPace10)

Portable Turbo Station (6/24/2017)

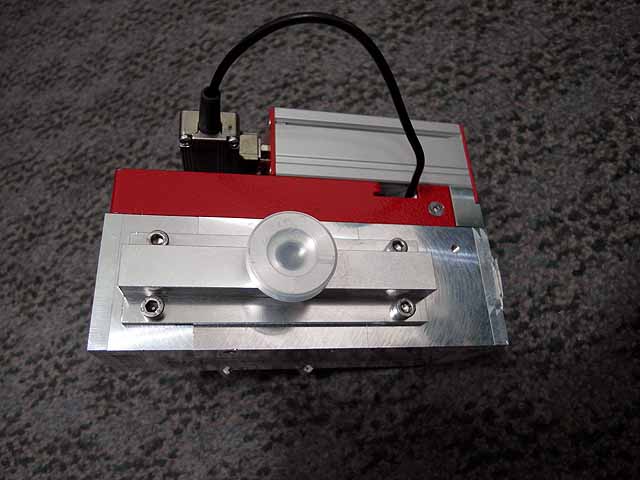

Pfeiffer TPD-011

Portable Turbo Station (6/24/2017)

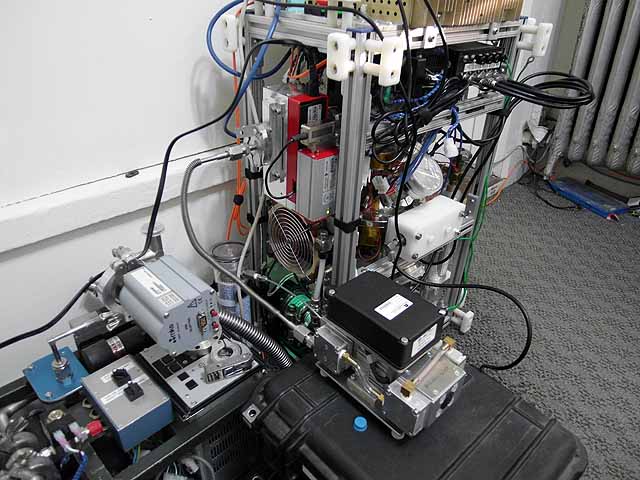

Testing of pump system with fusor

Portable Turbo Station (6/24/2017)

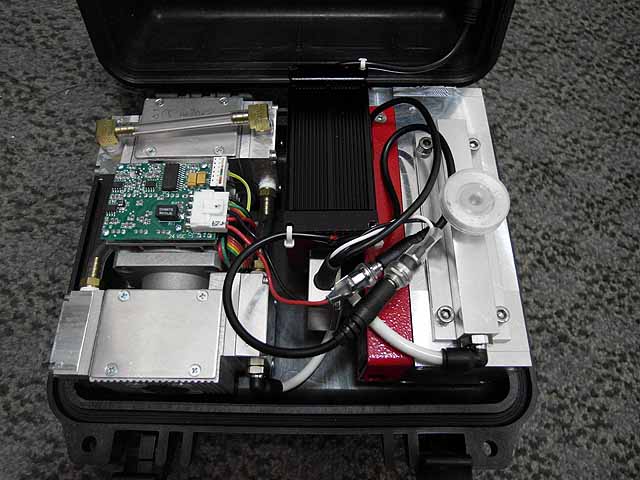

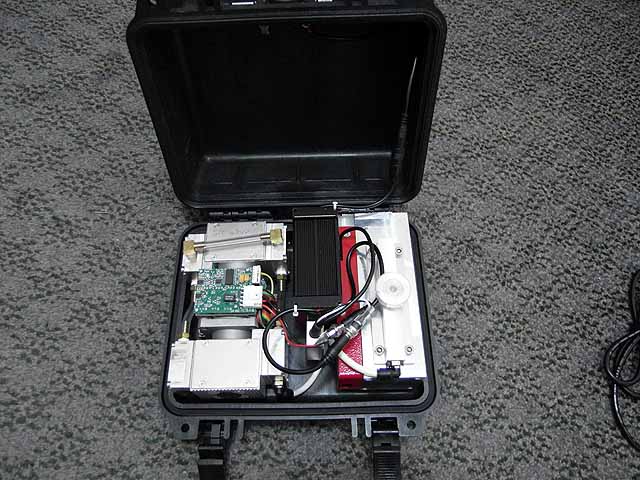

Diaphragm pump and turbo pump in pelican case

Portable Turbo Station (6/24/2017)

Diaphragm pump and turbo pump in pelican case

Portable Turbo Station (6/24/2017)

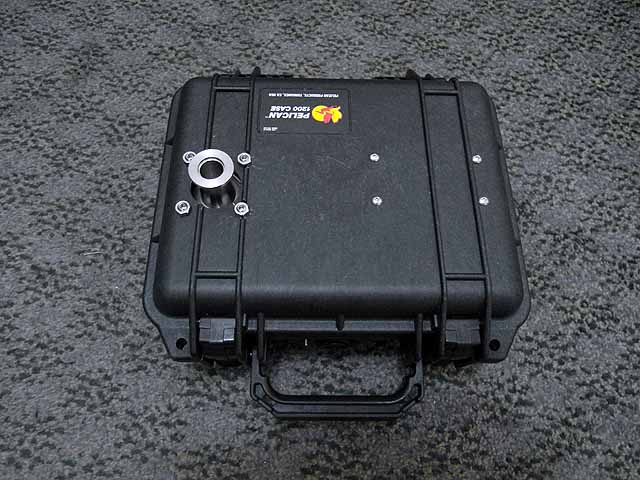

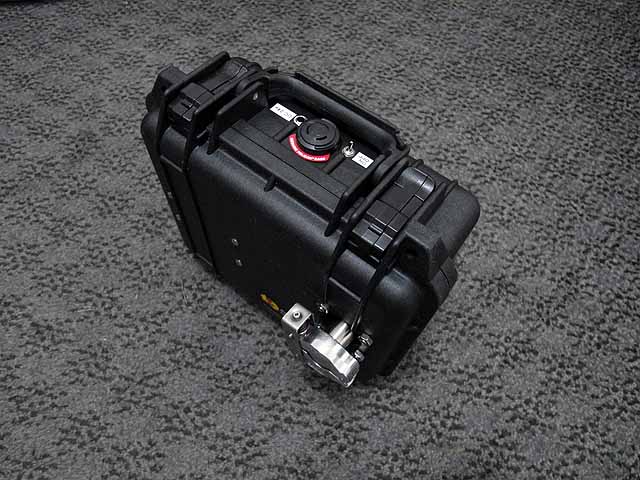

Turbo station assembled

Portable Turbo Station (6/24/2017)

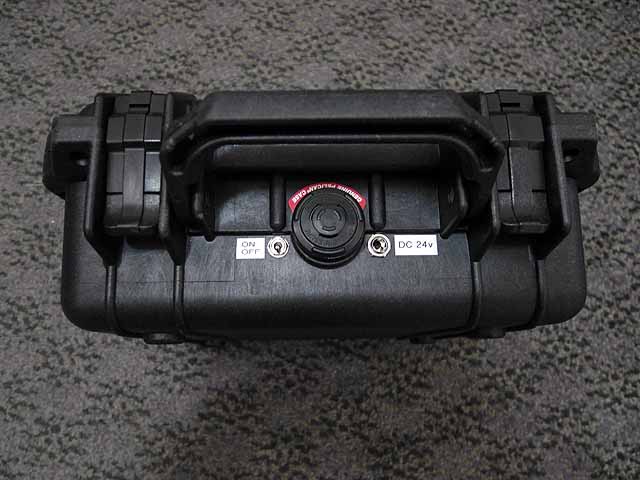

Power input and on/off switch

Portable Turbo Station (6/24/2017)

Turbo station assembled

Portable Turbo Station (6/24/2017)

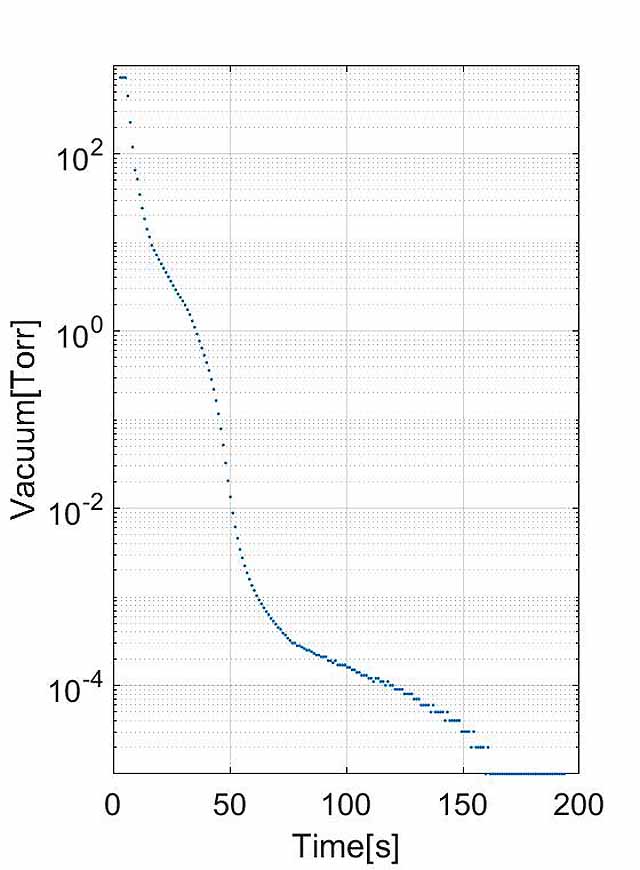

Pump down curve of station.
