| Seek thermal imager. VoX microbolometer Comparison to other thermal imagers
|
|
 |

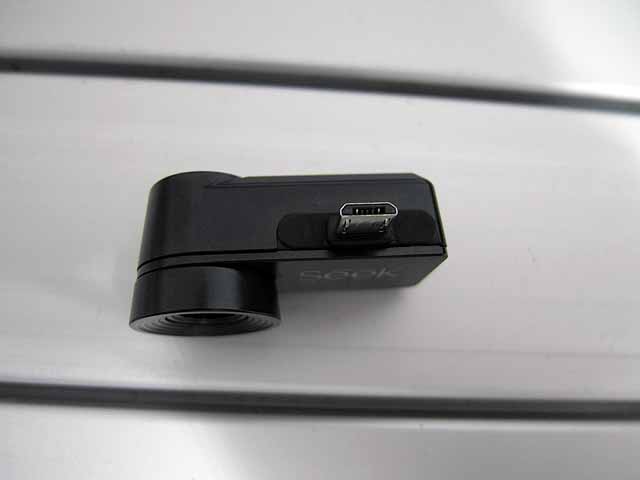

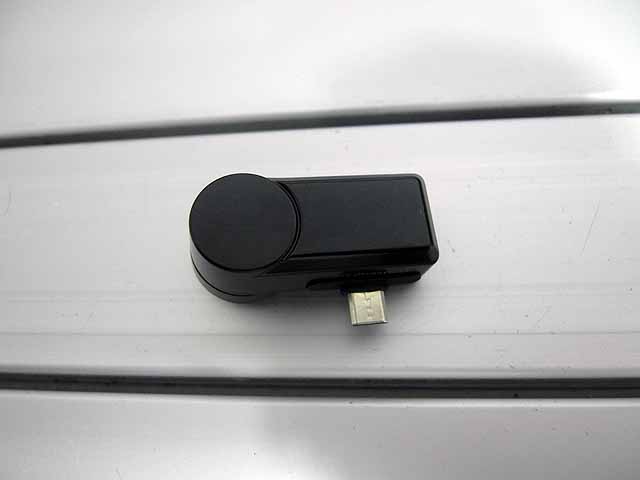

Thermal Imager (11/2/2014) Seek thermal imager |
 |
Thermal Imager (11/2/2014) Seek thermal imager |
 |
Thermal Imager (11/2/2014) Seek thermal imager |
 |

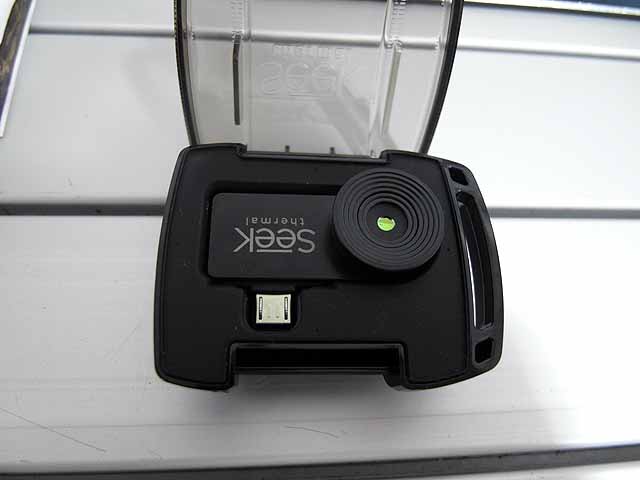

Thermal Imager (11/2/2014) Seek thermal imager with case |
 |

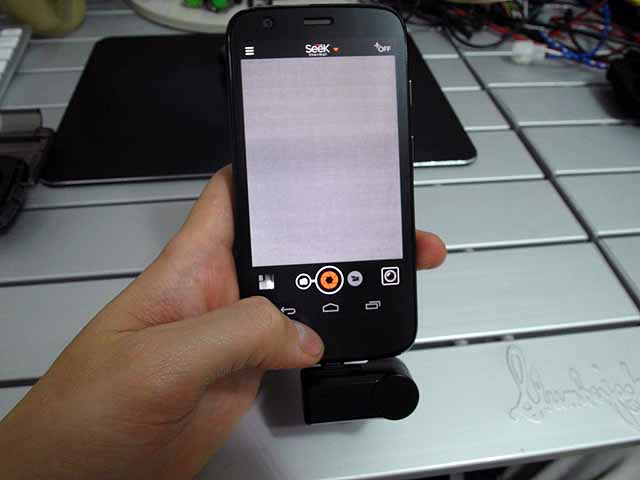

Thermal Imager (11/2/2014) Seek thermal imager with Motorola Moto G. This is the boost mobile phone that can be bought for $44 on ebay. |
 |
Thermal Imager (11/2/2014) Seek thermal imager |
 |

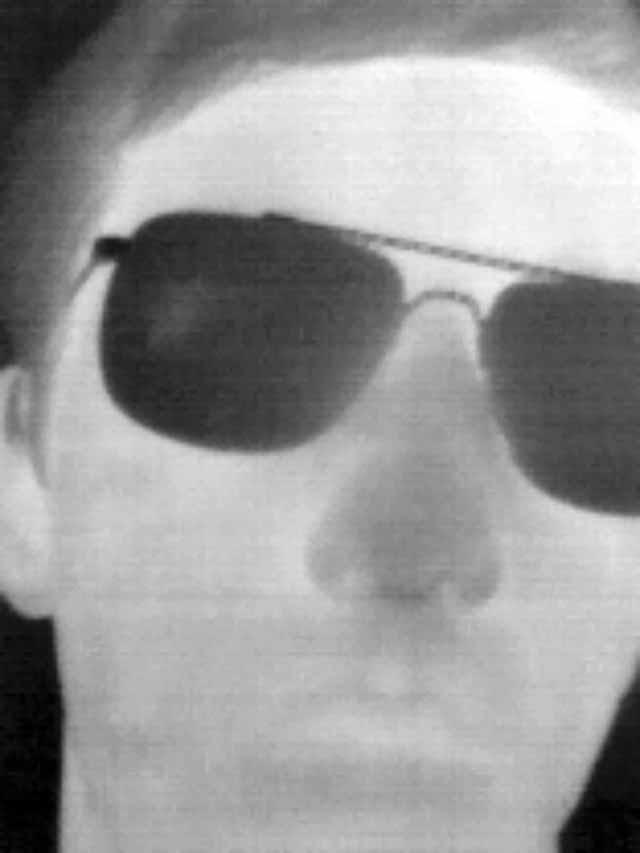

Thermal Imager (11/2/2014) Thermal image of me |
    |
Thermal Imager (11/2/2014) Resized to 205x156 resolution |
 |
Thermal Imager (11/2/2014) People and a car |
 |
Thermal Imager (11/2/2014) Soldering iron tip, stationary about 4" away |
 |
Thermal Imager (11/2/2014) Soldering iron moved rapidly in front of camera captures 4 separate images of the tip. Several users (and me) have noticed ghosting / blurring when the thermal imager is moved during a picture. This appears to be caused by the software taking 4 frames and adding them into a single frame. This is probably done to get the <9Hz frame rate that is required for export control. From this image it is evident that the camera hardware can capture closer to 36Hz and the display is limited only by software. |
 |

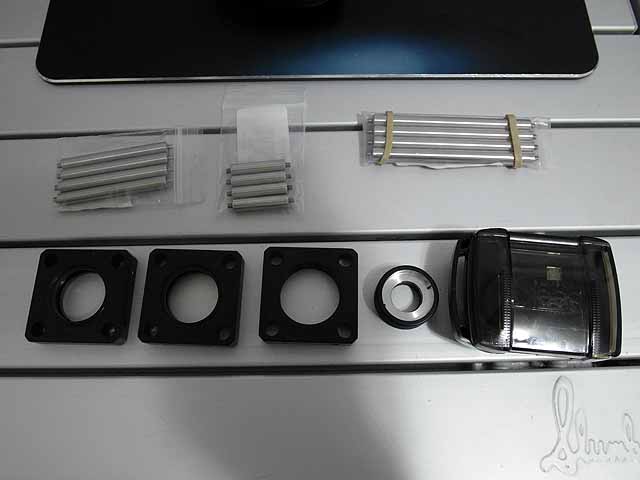

Thermal Imager (11/8/2014) Adapter to thorlabs cage |
 |

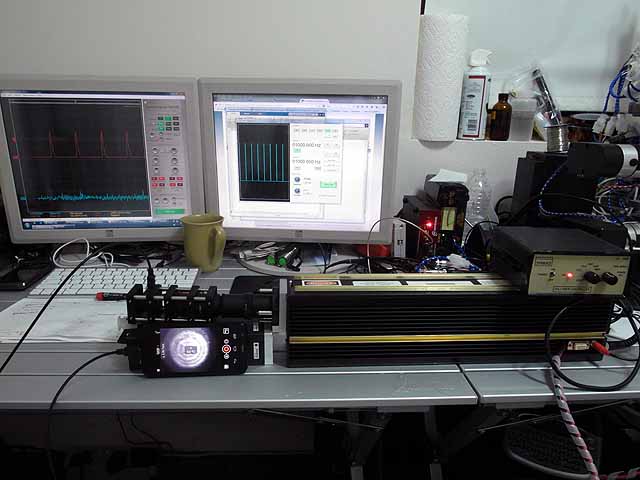

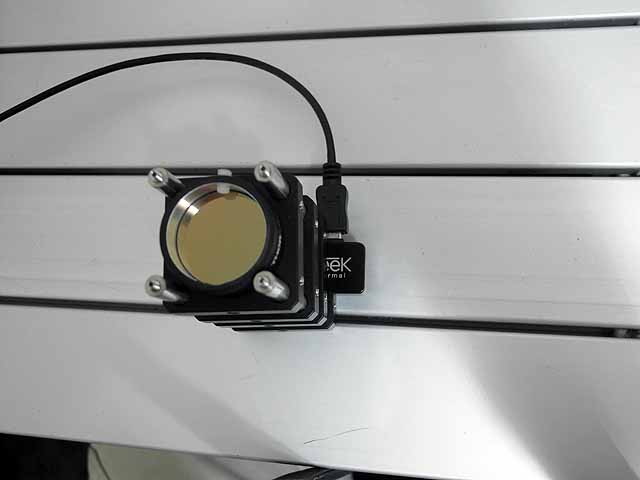

Thermal Imager (11/8/2014) Seek thermal imager mounted on thorlabs cage with beam condensor and 200x power attenuator |
 |
Thermal Imager (11/8/2014) 200x power attenuator |
 |

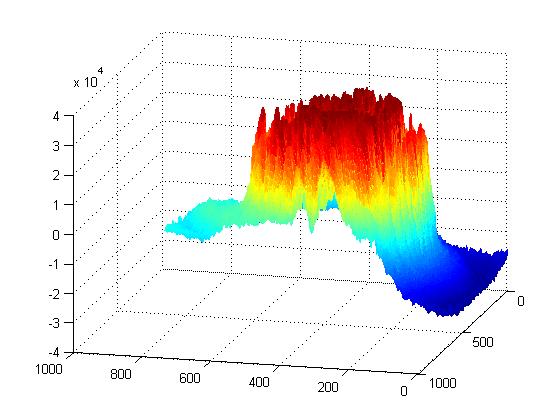

Thermal Imager (11/8/2014) Imaging CO2 laser beam ~5W, 1kHz, 6% duty cycle |
 |

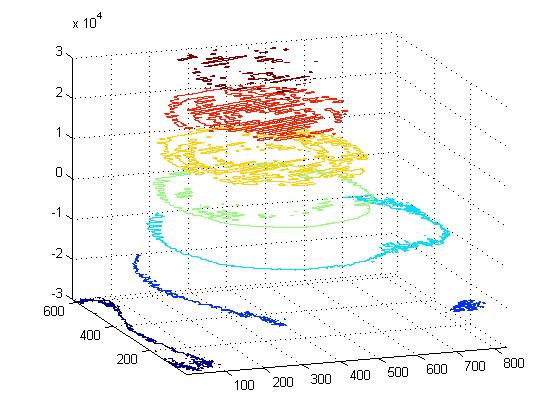

Thermal Imager (11/8/2014) Imaging CO2 laser beam |
 |
Thermal Imager (11/8/2014) Imaging CO2 laser beam |
 |
Thermal Imager (11/8/2014) Imaging CO2 laser beam |
Thermal Imager (11/8/2014) Seek thermal imager |
|
|
|
|
|
