L3 Thermal Eye 2500AS 2620AS Thermal Imager




L3 thermal eye 2500AS thermal imager and 2620AS DSP board. Amorphous silicon microbolometer

  • 160x120 resolution 46.8um pixels
  • 7-14um wavelength
  • 100mK sensitivity
  • 8-32VDC input
  • 50x35 deg FOV
  • 10ms thermal time constant
  • 30Hz frame rate

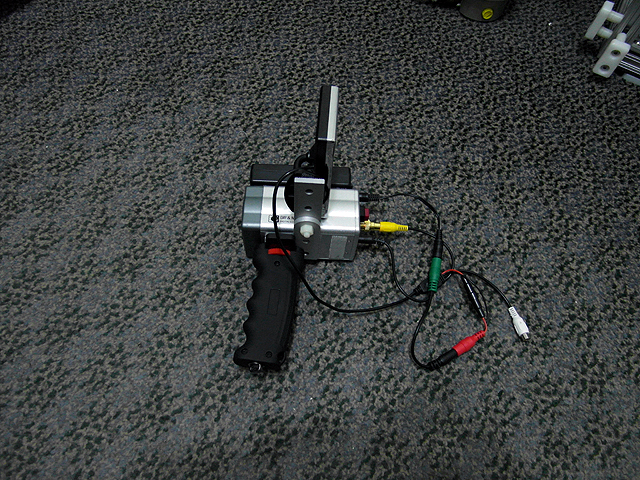

Thermal Imager (8/24/2013)

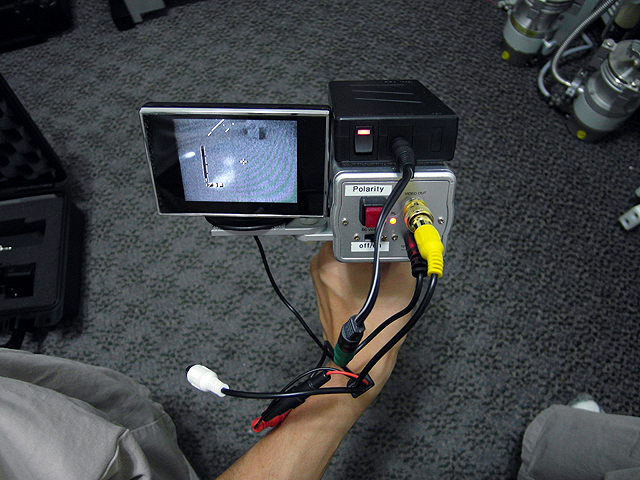

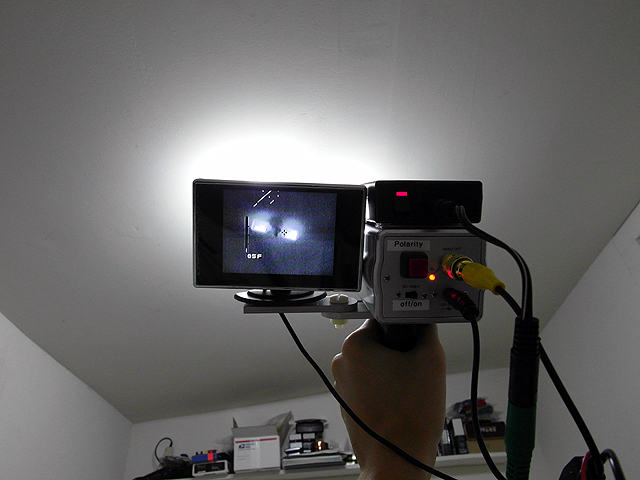

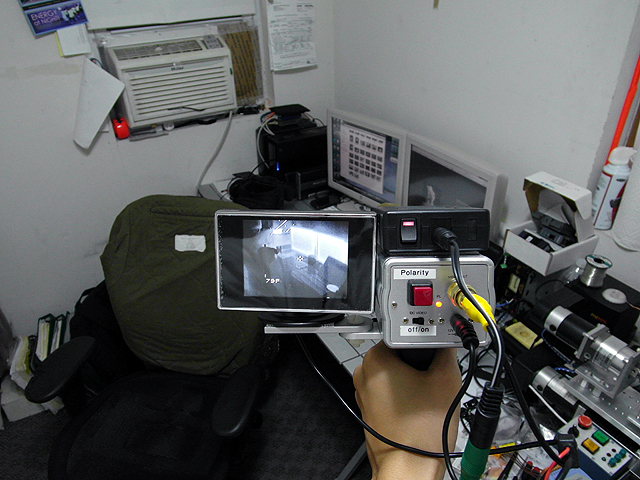

Hand held thermal imager.



Thermal Imager (9/15/2013)

Thermal imager video of bats.



Thermal Imager (8/24/2013)

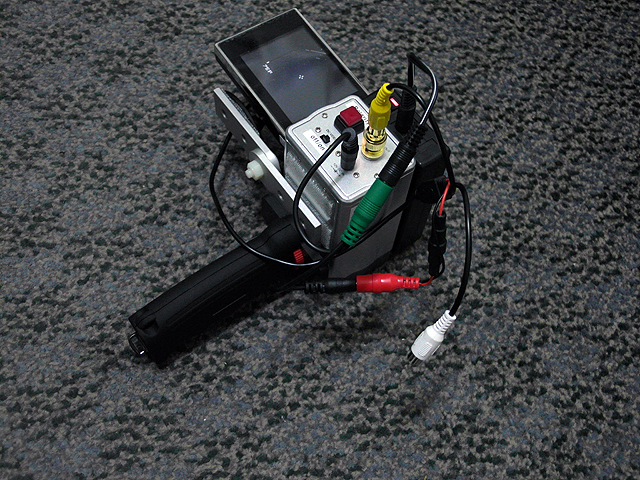

Initial thermal imager.



Thermal Imager (8/24/2013)

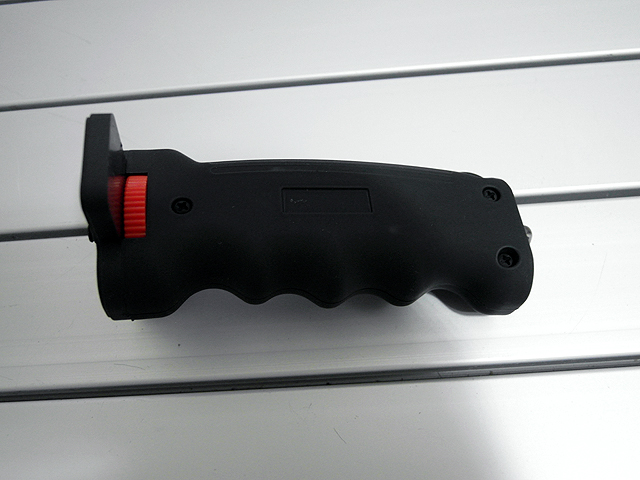

Camera handle



Thermal Imager (8/24/2013)

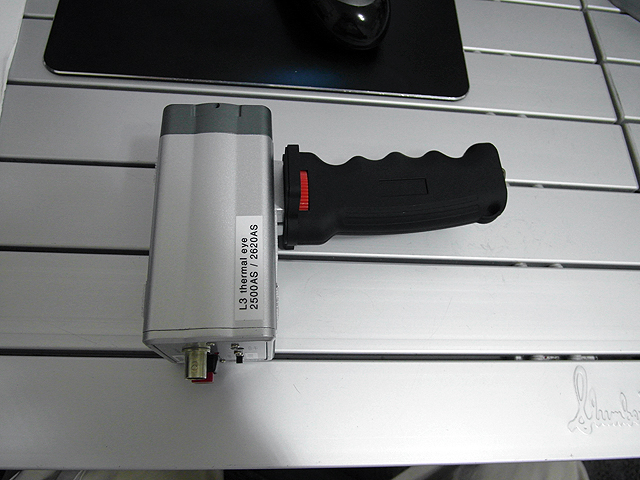

Camera handle mounted



Thermal Imager (8/24/2013)

Camera handle mounted



Thermal Imager (8/24/2013)

Camera handle mounted



Thermal Imager (8/24/2013)

Camera handle mounted



Thermal Imager (8/24/2013)

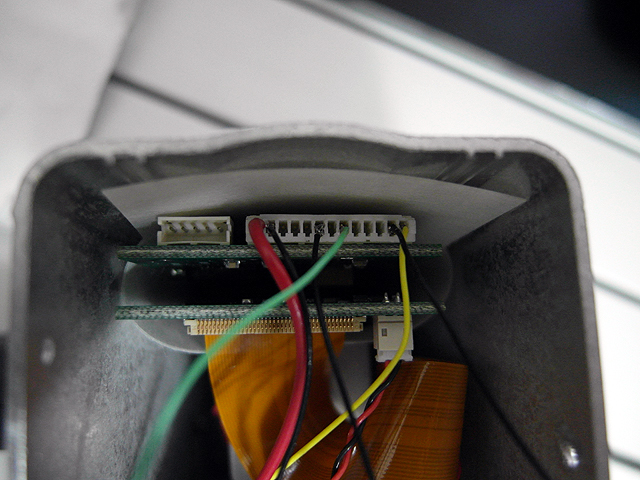

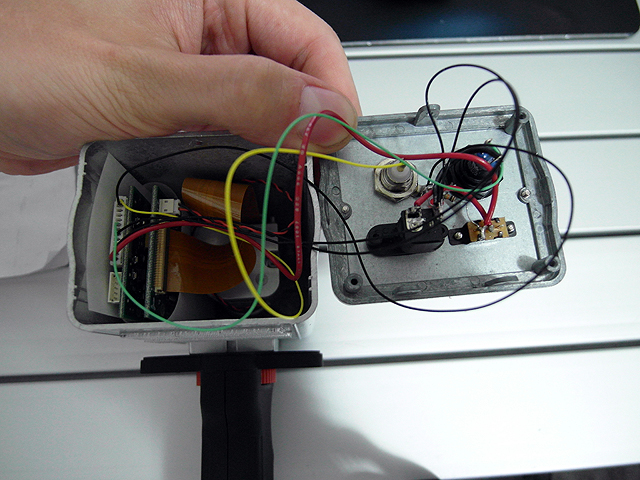

Original wiring job.



Thermal Imager (8/24/2013)

Original wiring job.



Thermal Imager (8/24/2013)

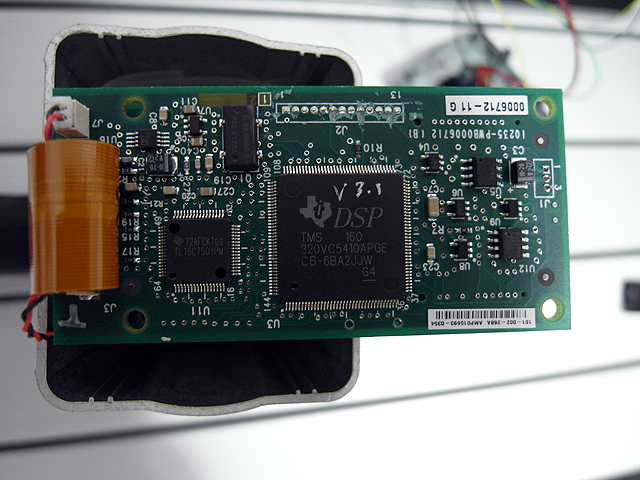

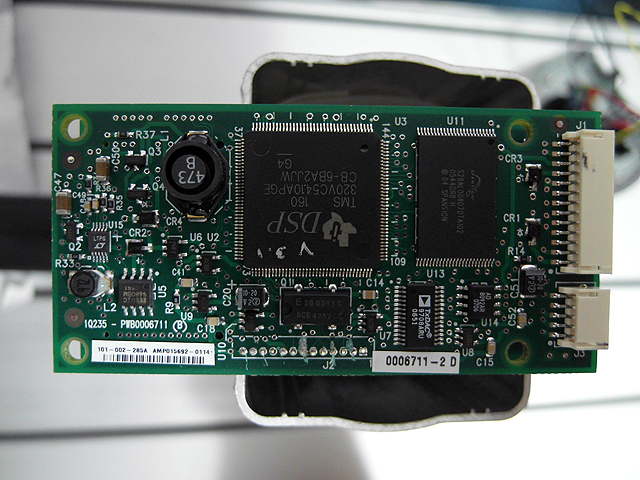

DSP board



Thermal Imager (8/24/2013)

DSP board



Thermal Imager (8/24/2013)

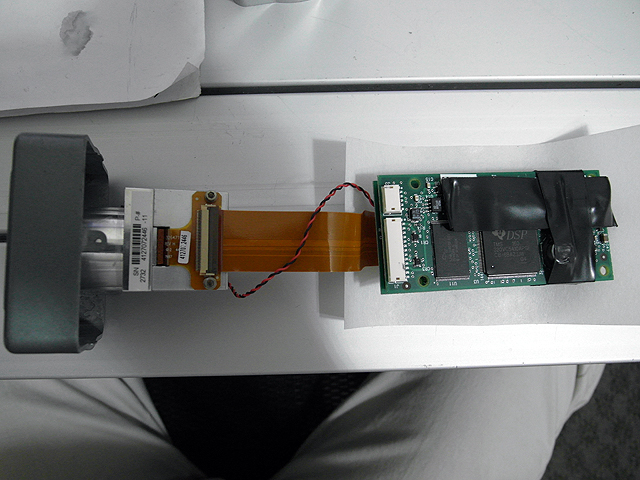

Thermal core and DSP board



Thermal Imager (8/24/2013)

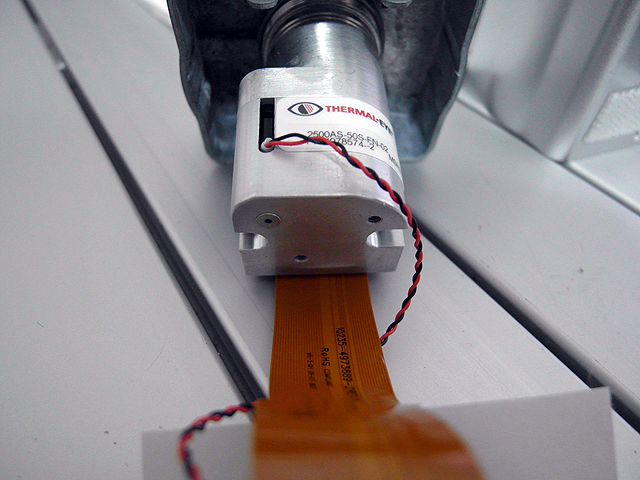

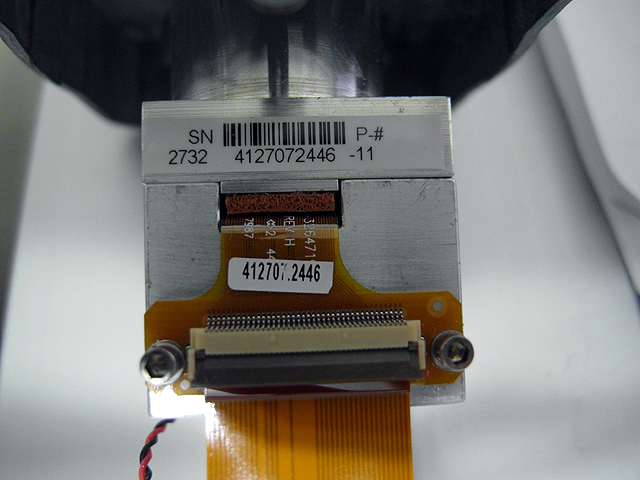

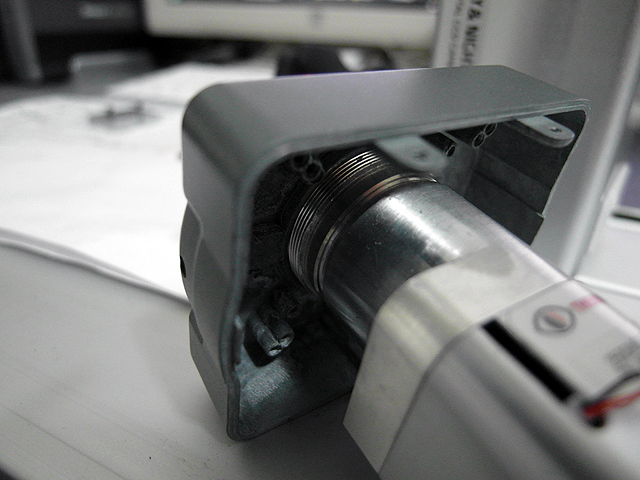

Thermal core



Thermal Imager (8/24/2013)

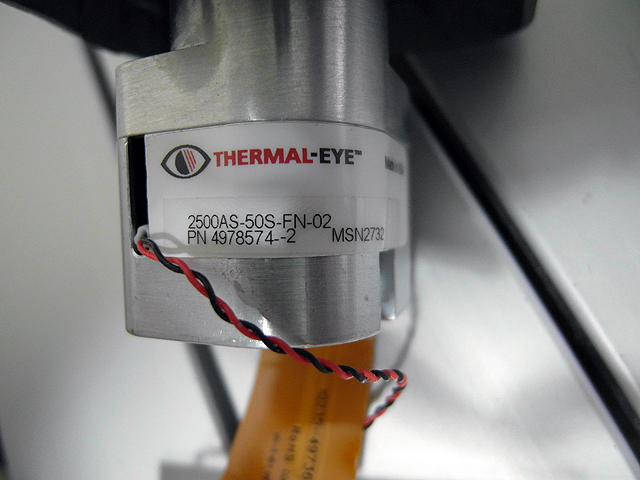

Thermal core



Thermal Imager (8/24/2013)

Thermal core



Thermal Imager (8/24/2013)

Thermal core



Thermal Imager (8/24/2013)

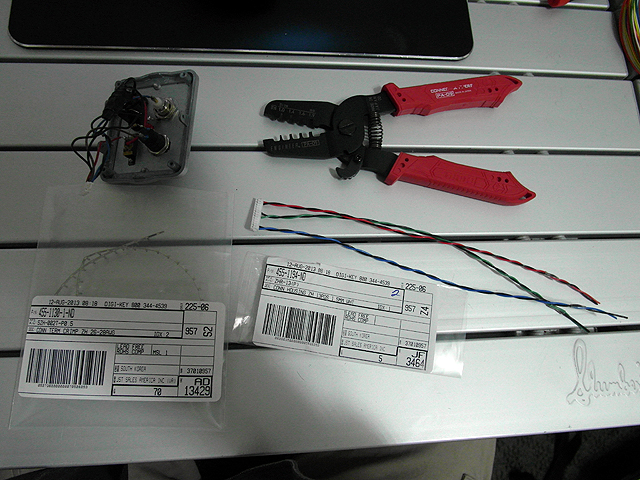

Crimper and new header.



Thermal Imager (8/24/2013)

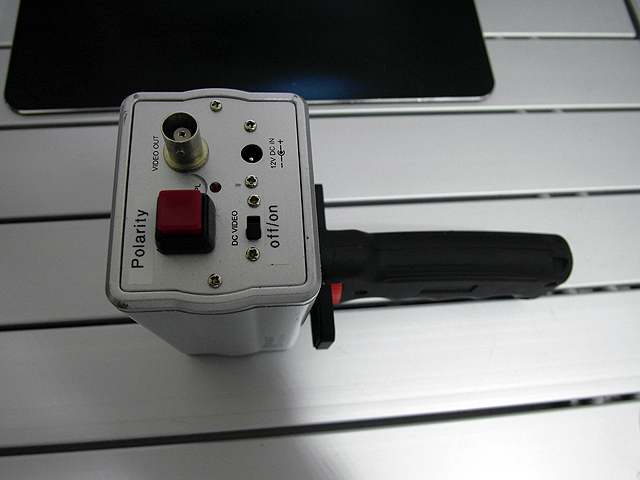

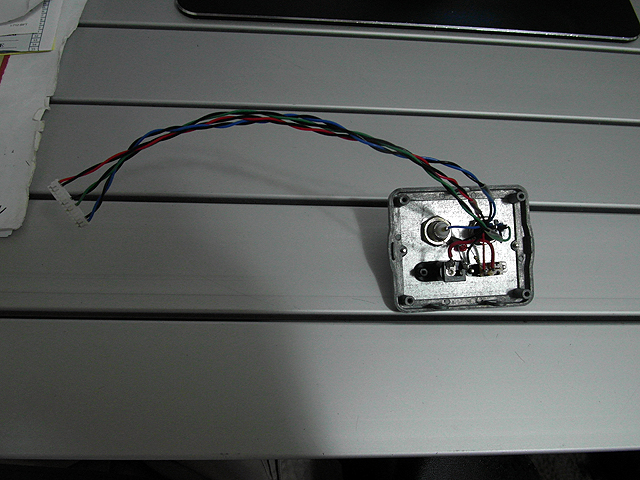

New header attached to back panel.



Thermal Imager (8/24/2013)

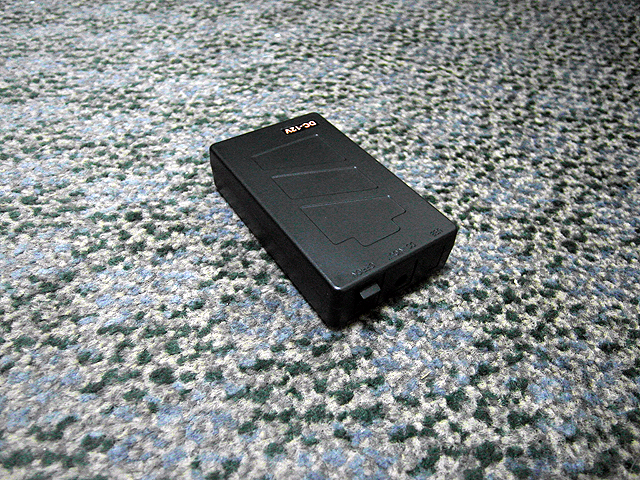

12v DC power pack



Thermal Imager (8/24/2013)

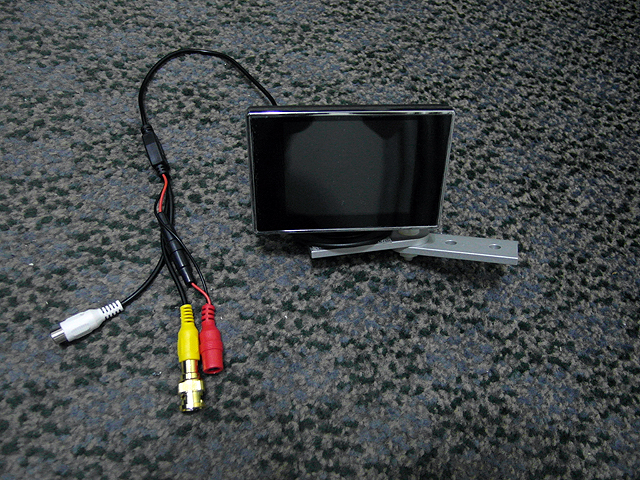

LCD display



Thermal Imager (8/24/2013)

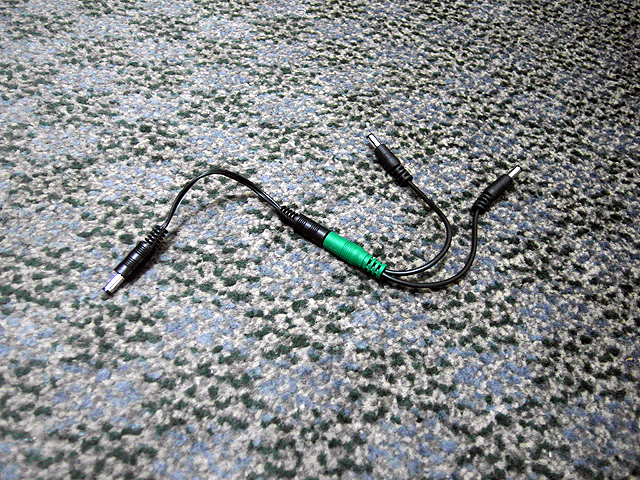

Power splitter.



Thermal Imager (8/24/2013)

Power pack and and LCD monitor attached.



Thermal Imager (8/24/2013)





Thermal Imager (8/24/2013)





Thermal Imager (8/24/2013)





Thermal Imager (8/24/2013)





Thermal Imager (8/24/2013)



Thermal Imager (8/24/2013)



Thermal Imager (8/24/2013)



Thermal Imager (8/24/2013)

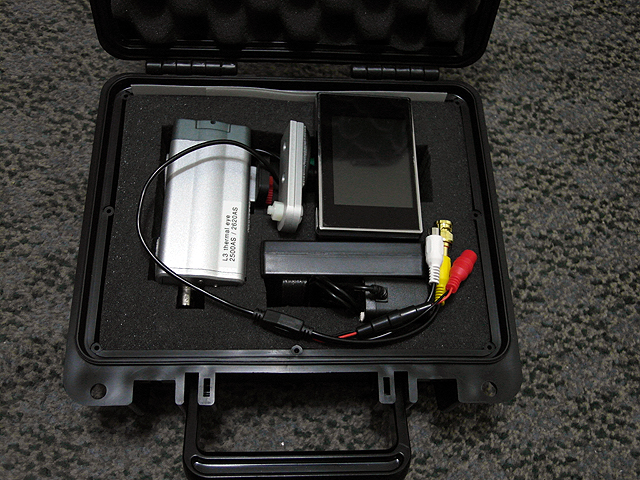

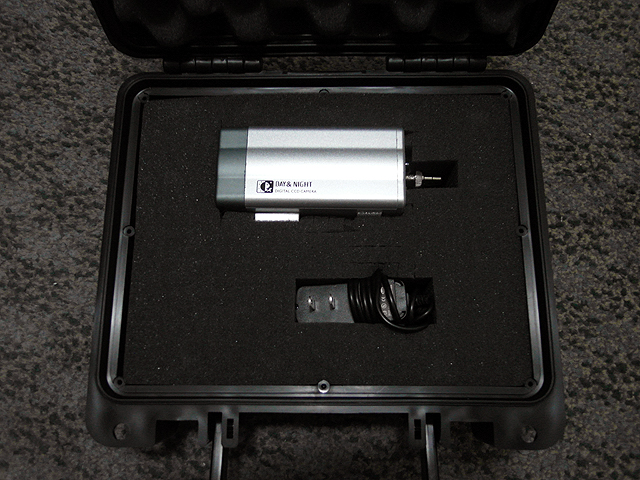

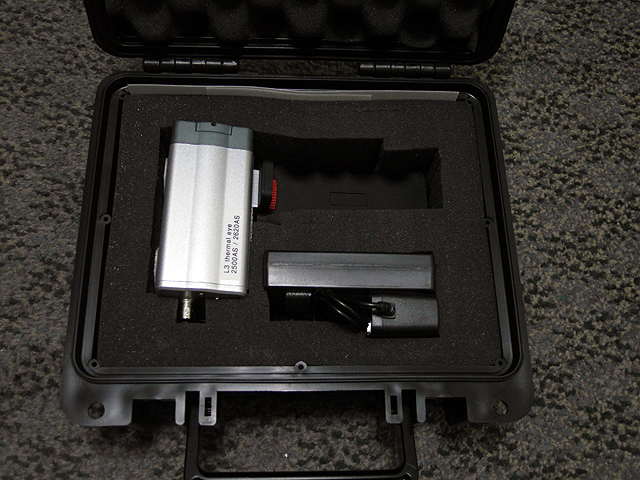

In case



Thermal Imager (8/24/2013)

In case



Thermal Imager (7/4/2014)

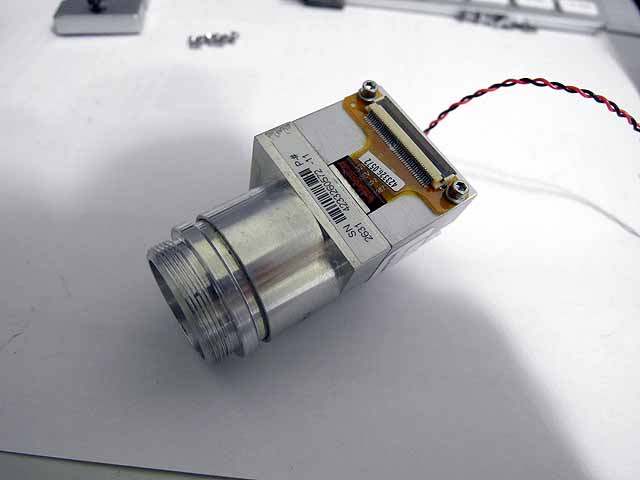

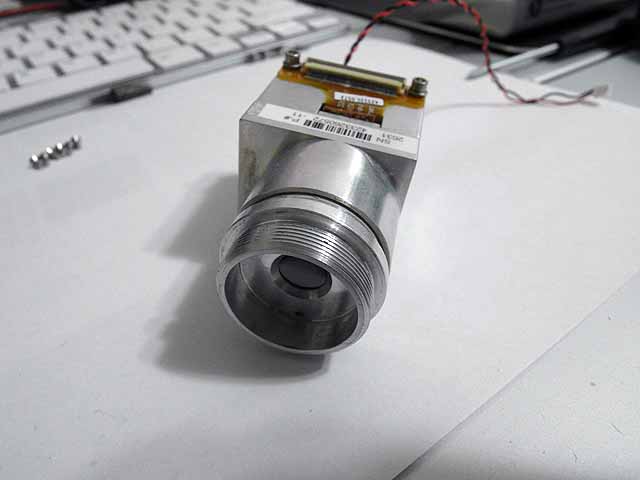

Amorphous silicon core



Thermal Imager (7/4/2014)

Amorphous silicon core



Thermal Imager (7/4/2014)

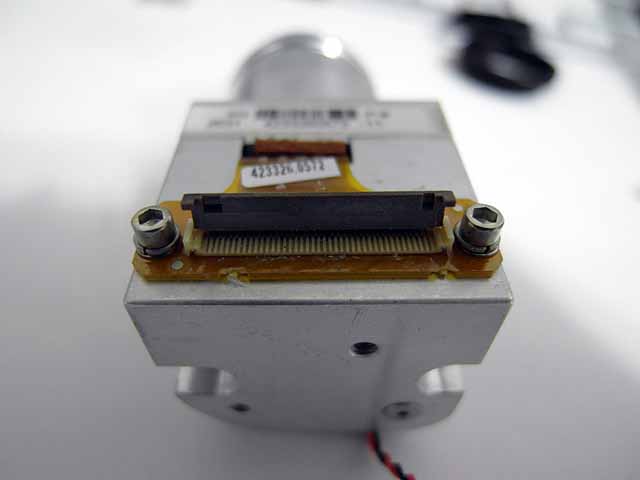

Ribbon connector



Thermal Imager (7/4/2014)

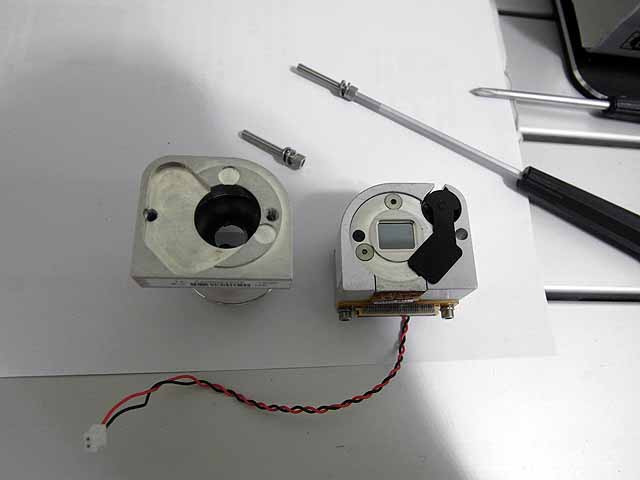

Amorphous silicon core opened



Thermal Imager (7/4/2014)

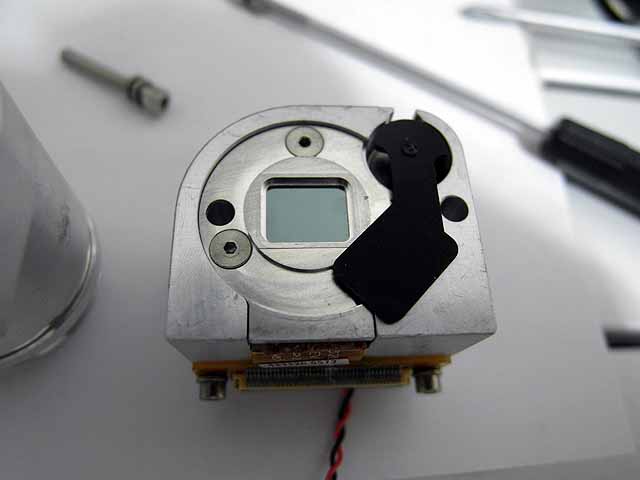

Amorphous silicon core detector and FFC shutter.



Thermal Imager (7/4/2014)

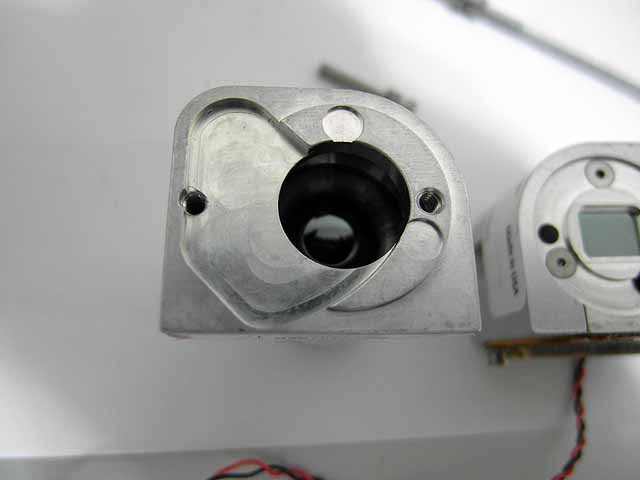

Amorphous silicon core lens



Thermal Imager (7/4/2014)

Thermal imaging of expanded CO2 laser beam.
