Flapper Nozzle Hydraulic Servo Valve Teardown




Teardown of a flapper nozzle hydraulic servo valve. Crane 37-037B



Servo valve (10/13/2014)

Valve spool and flapper nozzle/torque coil assembly



Servo valve (10/13/2014)

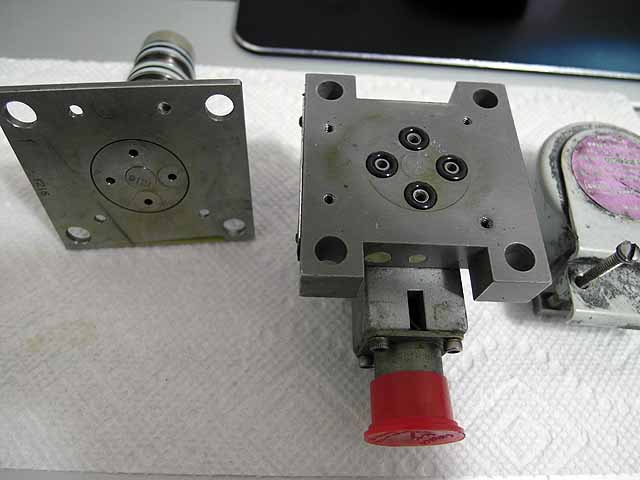

orings to seal valve spool and flapper nozzle/torque coil assembly



Servo valve (10/13/2014)

flapper nozzle/torque coil assembly



Servo valve (10/13/2014)

Iron magnet yoke



Servo valve (10/13/2014)

Iron magnet yoke



Servo valve (10/13/2014)

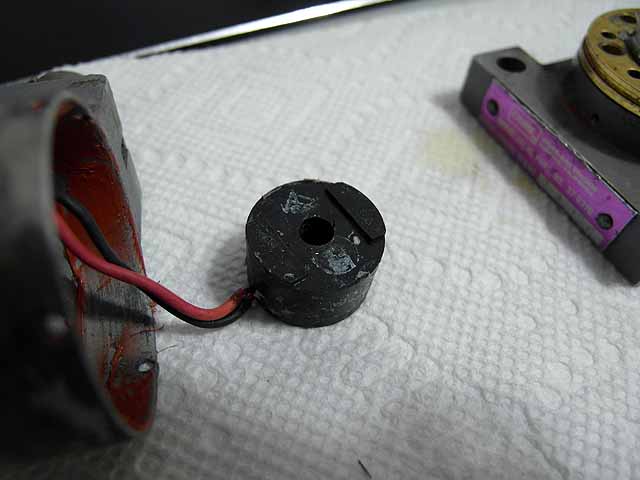

magnetic torque coil



Servo valve (10/13/2014)

magnetic torque coil



Servo valve (10/13/2014)

flapper nozzle/torque coil assembly



Servo valve (10/13/2014)

flapper nozzle torque bar exposed. torque bar is magnitized by magnetic coil and pulles the flapper towards one or the other nozzle



Servo valve (10/13/2014)

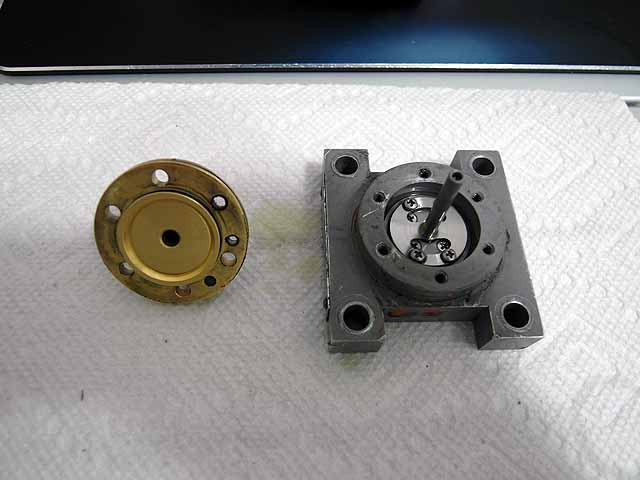

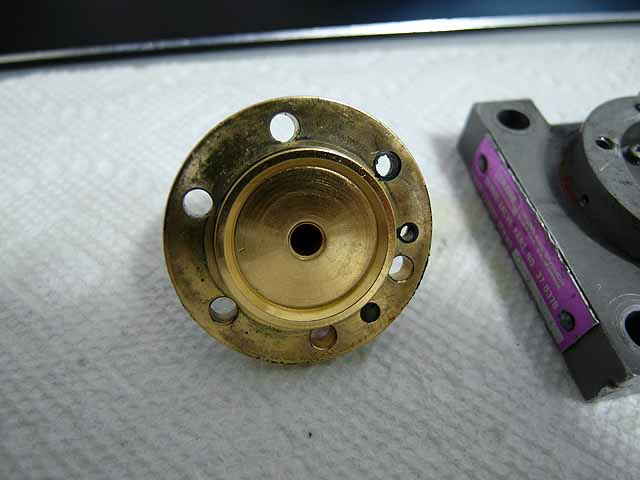

torque bar cover



Servo valve (10/13/2014)

torque bar



Servo valve (10/13/2014)

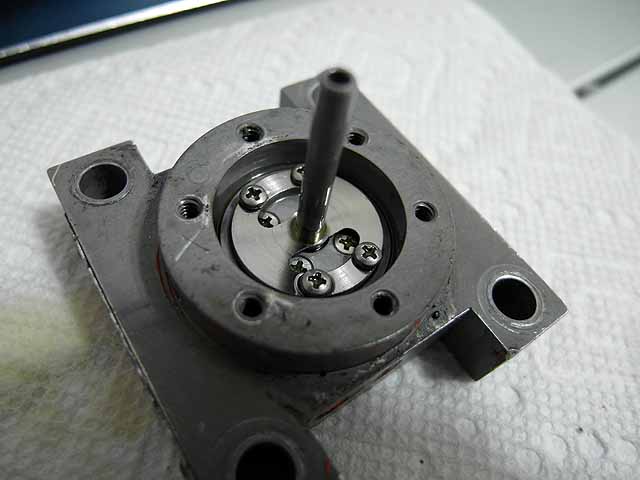

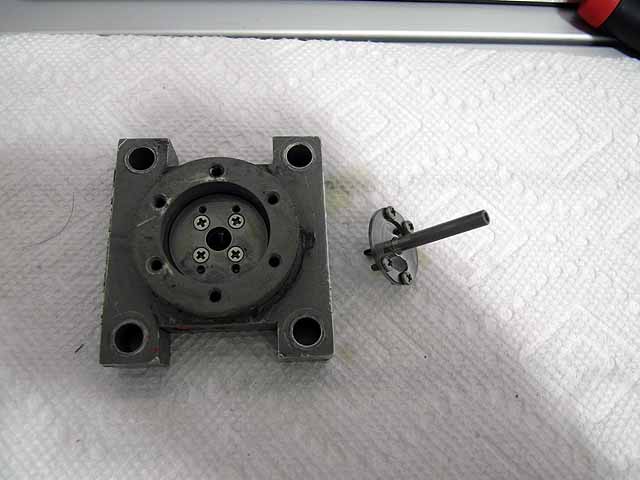

flapper removed



Servo valve (10/13/2014)

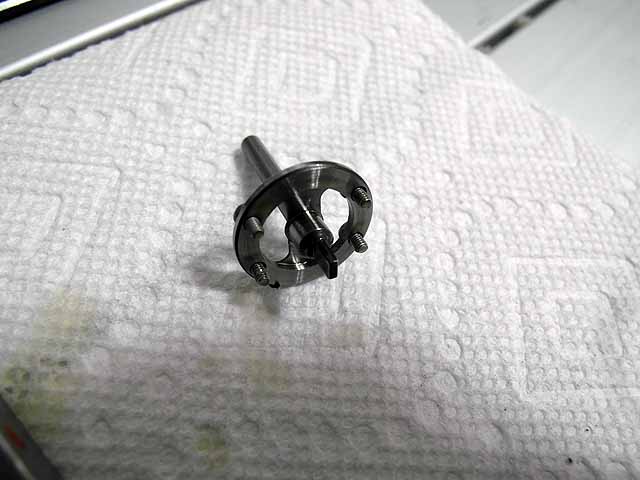

flapper



Servo valve (10/13/2014)

nozzles



Servo valve (10/13/2014)

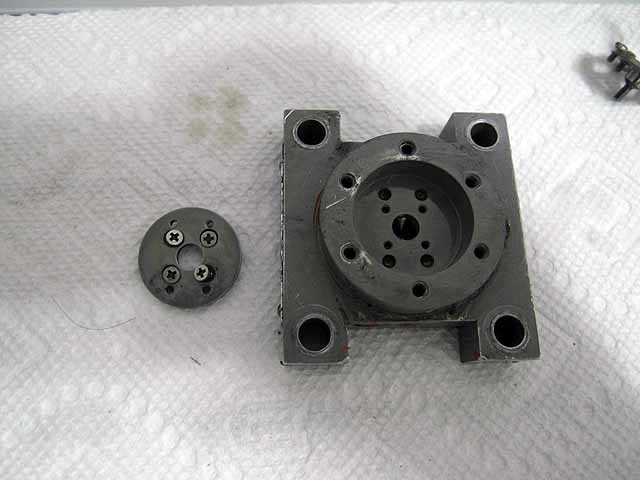

nozzle cover plate removed



Servo valve (10/13/2014)

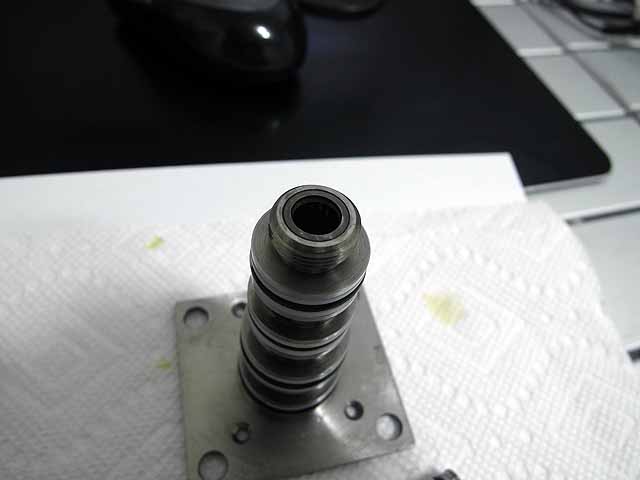

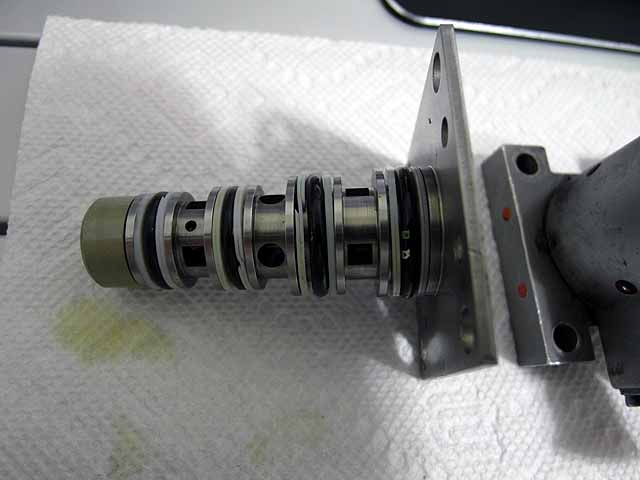

valve spool, and ports



Servo valve (10/13/2014)

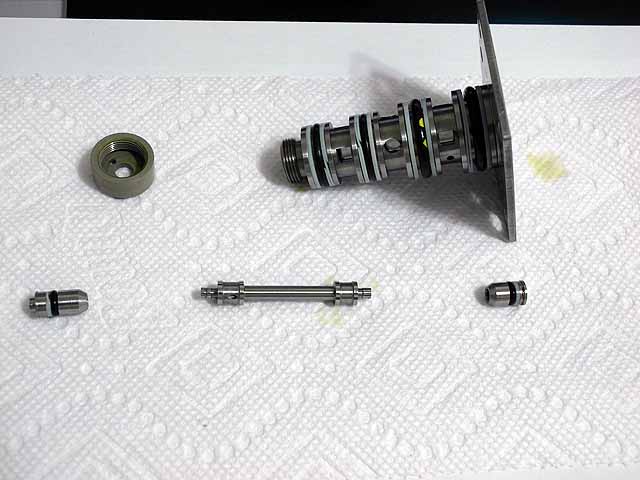

spool and end covers removed



Servo valve (10/13/2014)

spool



Servo valve (10/13/2014)

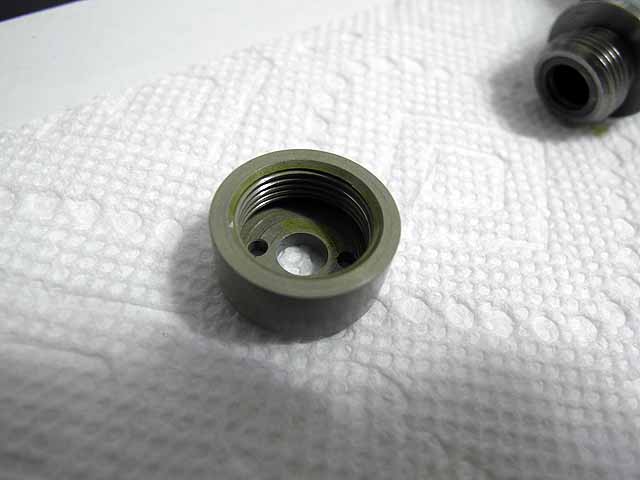

threaded cap



Servo valve (10/13/2014)

valve bore



Servo valve (10/13/2014)

threads for cap
