LTI Lasertech Impulse 200LR Laser Rangefinder




Overview:

A tear down and review of the Lasertech(LTI) Impulse 200LR laser rangefinder is documented. The Laser tech Impulse 200LR rangefinder has a 500m maximum range with 0.01m resolution and 0.03m accuracy. It will detect a minimum range of about 0.08m (rangefinder face against target), limited by the height between the mounting points of the lenses (the scattered light will travel on a triangular path). It has a built in inclinometer with 0.1deg accuracy (in the rangefinder I have the inclinometer is non-functional). The rangefinder has a built in RS232 interface to communicate with a computer or other survey equipment.

Overall the Laser tech rangefinders are some of the best and most accurate rangefinders on the market. Unfortunately their new price is very high, the maximum data rate is 1-2 readings per second, and they are larger then most portable units.

http://www.lasertech.com/Impulse-200-LR-Specifications.aspx

Hardware Specifications:

Weight: 2.2 lbs. (1 kg)
Size: 6 x 2.5 x 5 in. (15.2 x 6.4 x 12.7 cm)
Power Supply: (2) AA batteries (20 hours of use)
Accuracy (Typical): 0.1 - 0.2 ft. (3 - 5 cm)
Accuracy (Max): 0.5 ft. (15 cm)
Overhead cable / Stake:  330 ft. (100 m)
Phone pole / Stockpile:  655 ft. (200 m)
Tree / Tower: 985 ft. (300 m)
Rock Face / Building: 1640 ft. (500 m)
Max Distance: 1885 ft. (575 m)
Range Resolution: 0.01 ft. (0.01 m)
Inclination Limits: +/- 90 deg.
Inclination Accuracy: +/- 0.1 deg.
Temperature:  - 22 to + 140 F (-30 to + 60 C)
Environment:  Waterproof to IP 67 and NEMA 6


Rangefinder (2/22/2014):

Lasertech rangefinder



Rangefinder (2/22/2014):

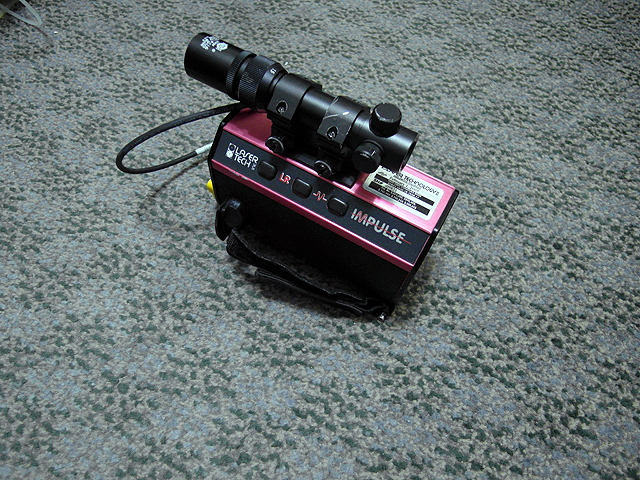

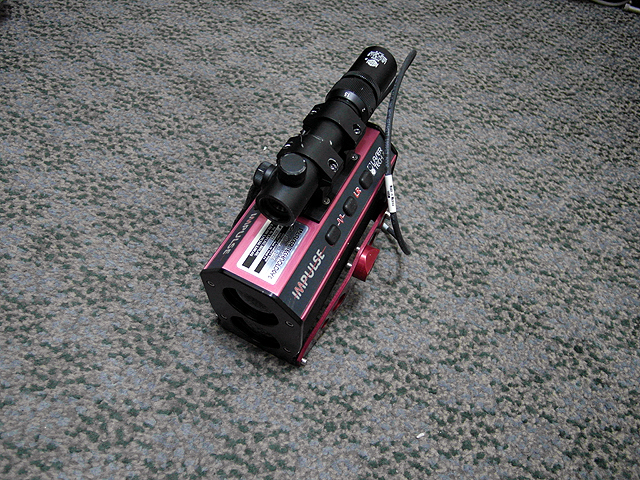

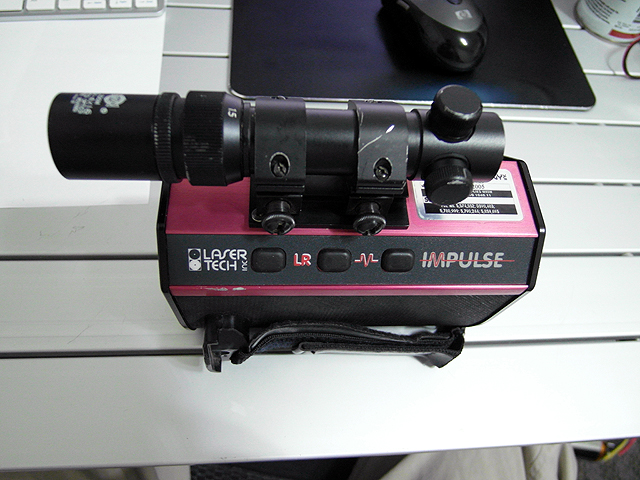

Scope mounts on top



Rangefinder (2/22/2014):

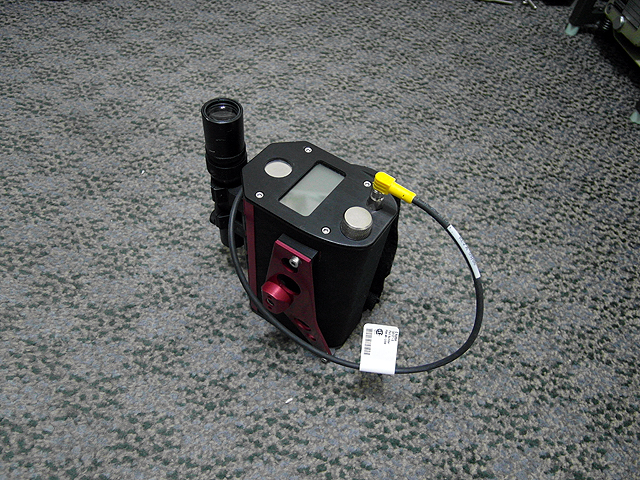

LCD display and serial cable(pinout in manual)



Rangefinder (2/22/2014):

Side view



Rangefinder (2/22/2014):

Front view on lenses



Rangefinder (2/22/2014):

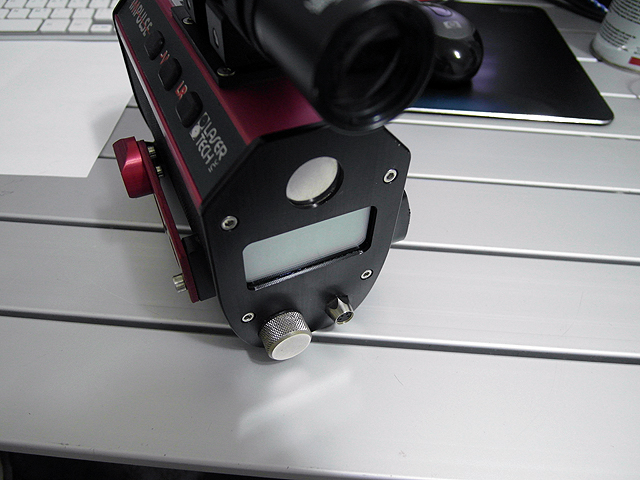

Back view of serial cable and LCD



Rangefinder (2/22/2014):

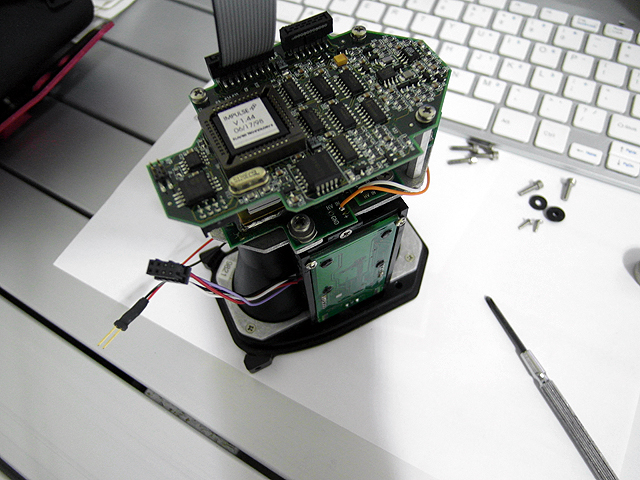

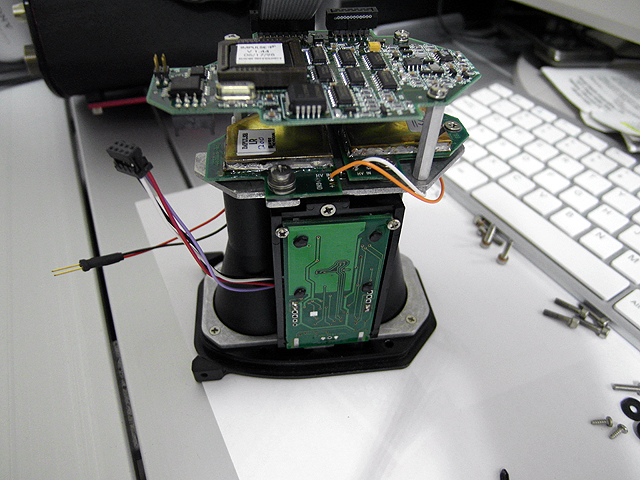

Circuitry and optics



Rangefinder (2/22/2014):

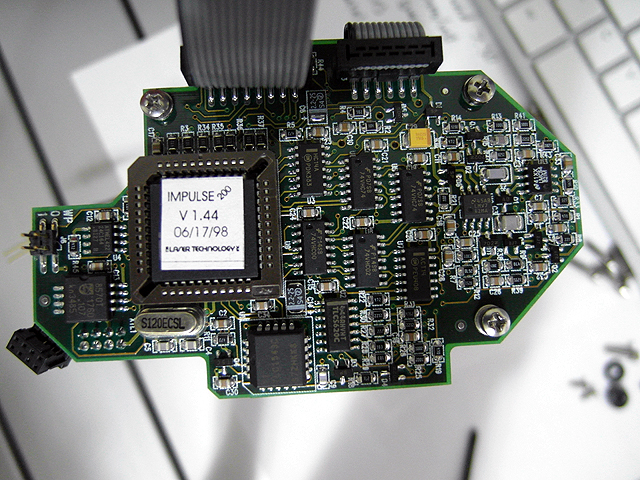

Controller board.



Rangefinder (2/22/2014):

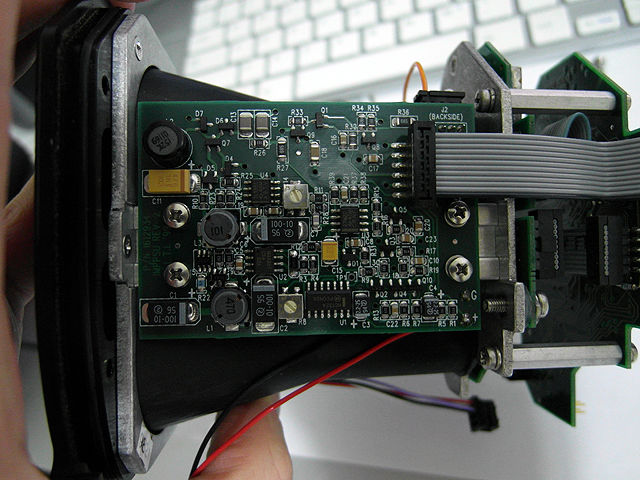

HV power board for laser and diode.



Rangefinder (2/22/2014):

Top view of circuitry



Rangefinder (2/22/2014):

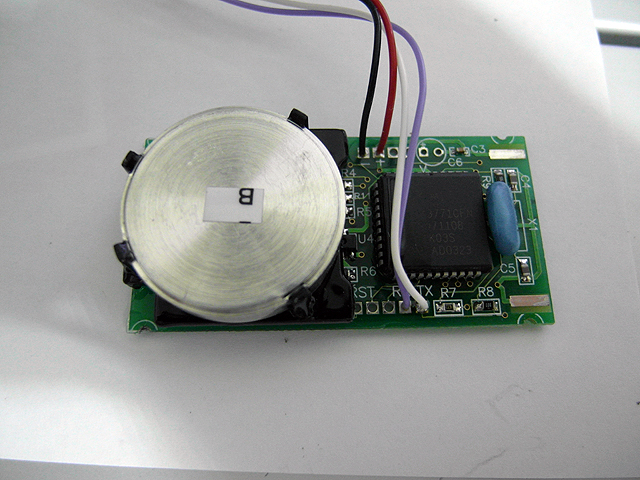

Resistive fluid tilt sensor, probably communicates over a serial link. The sensing element in this rangefinder is bad



Rangefinder (2/22/2014):

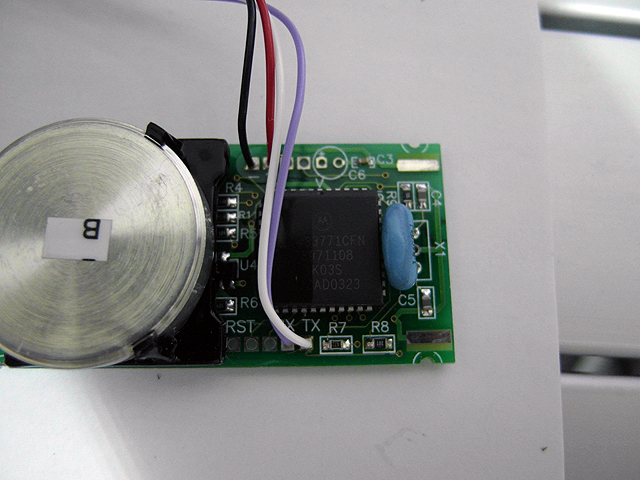

Control chip for inclinometer is a Motorola microcontroller.



Rangefinder (2/22/2014):

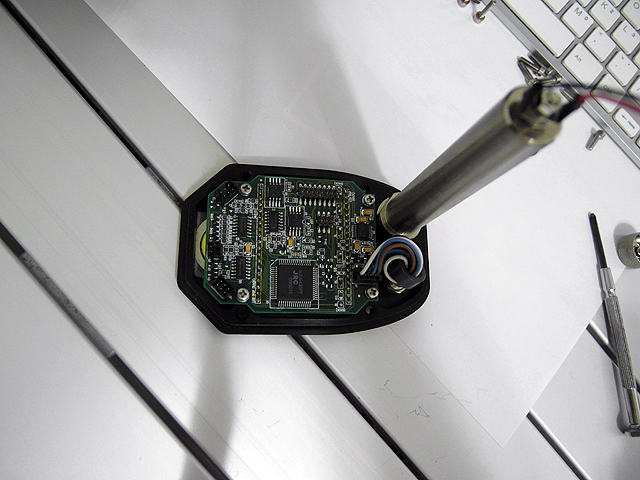

Display board and battery compartment.



Rangefinder (2/22/2014):

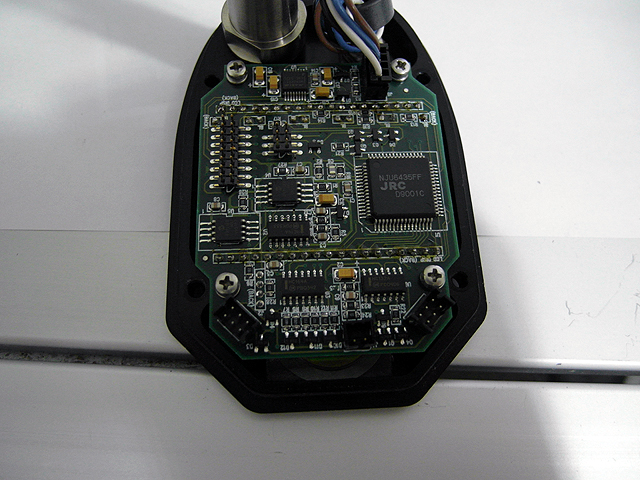

Display board



Rangefinder (2/22/2014):

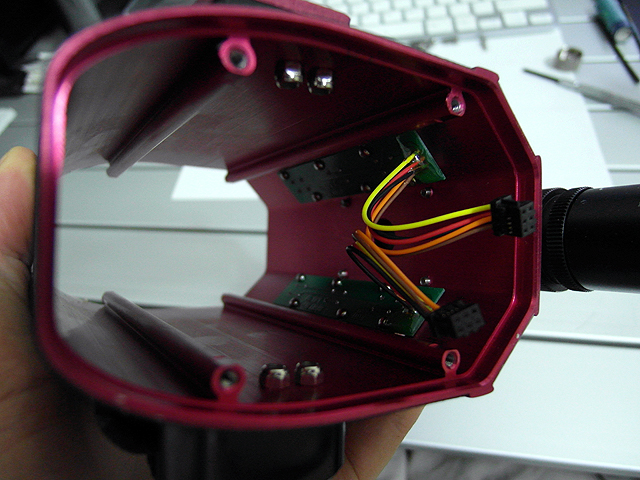

Inside casing



Rangefinder (2/22/2014):

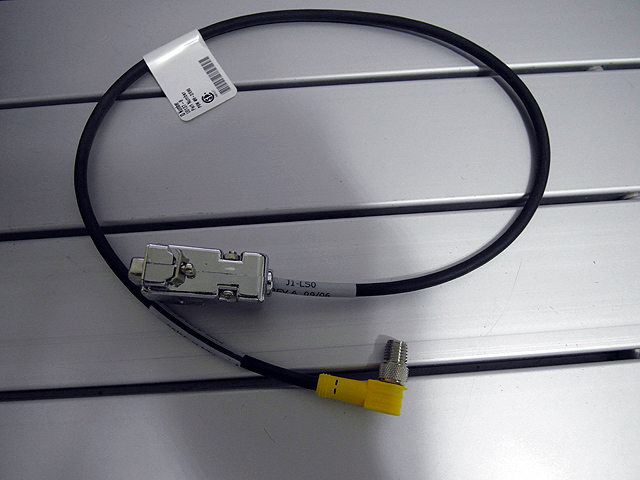

Serial cable



Rangefinder (2/22/2014):

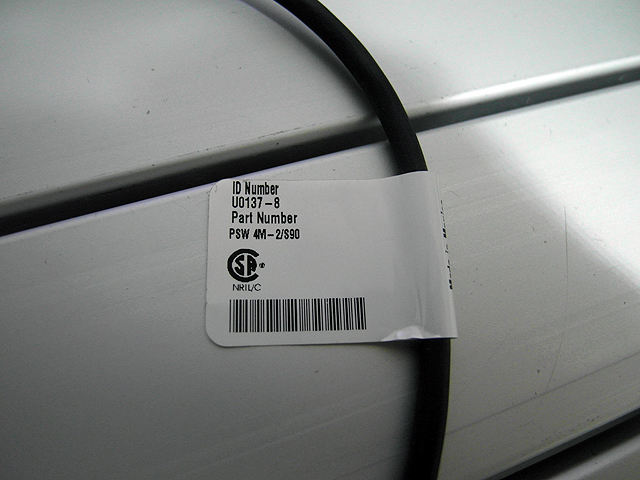

Connector is a Turck PSW 4M-2/S90



Rangefinder (2/22/2014):

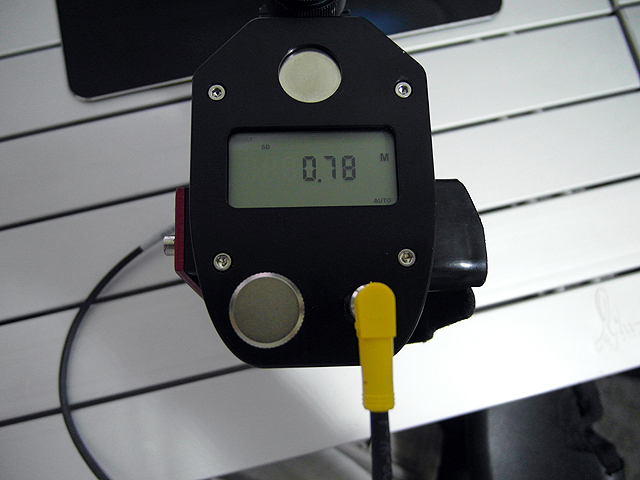

Displaying range



Rangefinder (2/22/2014):

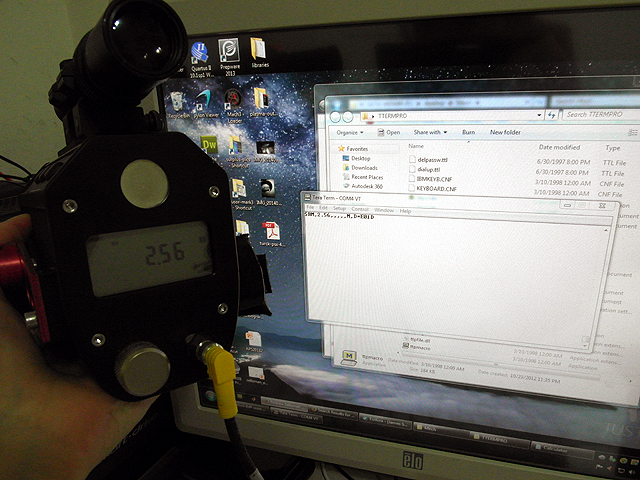

Sending data to computer.
